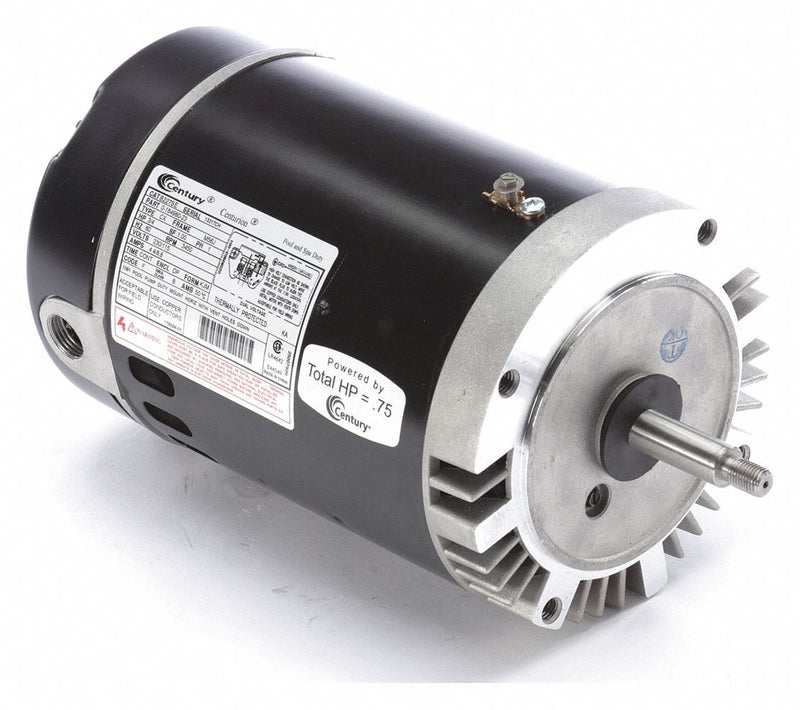

Motors are equivalent replacements for most popular pool and spa pump manufacturers' pumps. Sealed switch design prevents water infiltration. Moistureheat-resistant bearing lubricant.
| Item | Pool and Spa Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Pool and Spa Pump |
| Motor Design | Permanent Split Capacitor |
| Motor Enclosure Design | Open Dripproof |
| HP | 3/4 |
| Nameplate RPM | 3450 |
| Frame | 56J |
| Motor Shaft Rotation | CCWSE |
| Voltage | 115/230 |
| Full Load Amps | 8.8/4.4 |
| Phase | 1 |
| Hz | 60 |
| Motor Mounting Type | Face |
| Motor Bearings | Ball |
| Finish | Black |
| Motor Flange Material | Aluminum |
| Shaft | Threaded 7/16"-20 UNF-2A RH 11/16 in From End |
| Shaft Material | 303 Stainless Steel |
| Motor Thermal Protection | Auto |
| Motor Service Factor | 1 |
| Ambient Temperature | 50 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 9/16 in |
| Ins. Class | B |
| RPM Range | 3001-3600 |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified (LR43341/LR94643), UL 1081 Approvable, UL Recognized (E44549/E25022) |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
