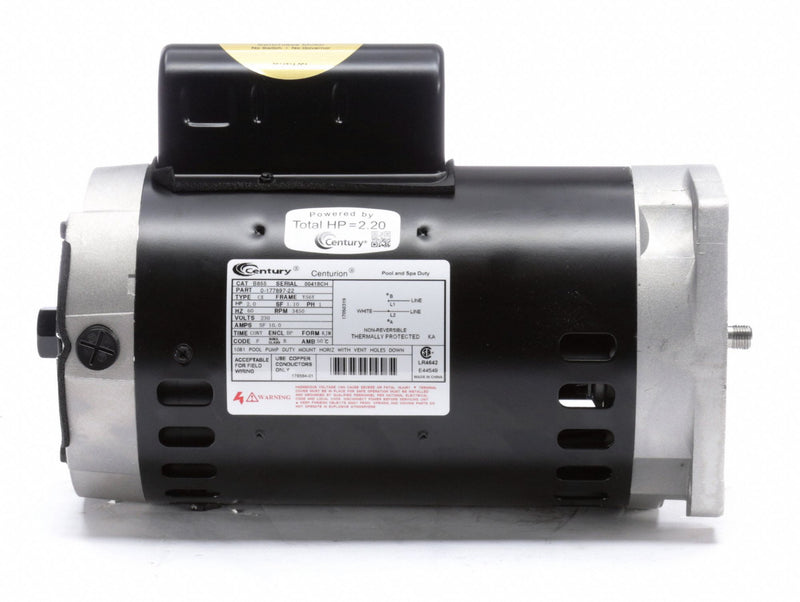

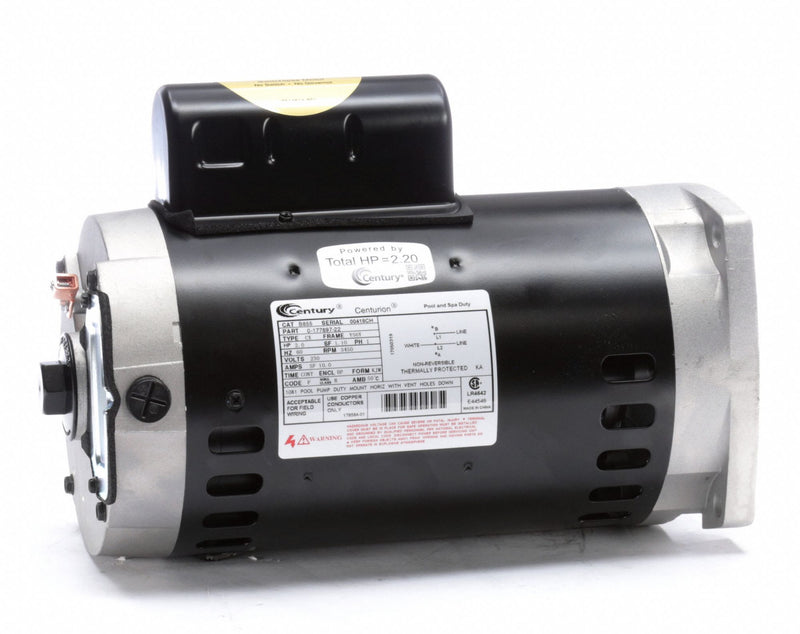

Century 2 HP Pool and Spa Pump Motor, Permanent Split Capacitor, 230V, 56Y Frame - B2855

CenturySKU: C1543480
MPN : B855
Weight : 30.75 lb
filler

Price:
$412.49 $503.04

Availability : Usually Ships in 1-2 Business Days

This single-compartment, permanent split capacitor motor can be used as an equivalent replacement for most popular pool and spa manufacturers' pumps. Must equal or exceed service factor and HP for proper replacement. Auto thermal protection helps protect against damage caused by overheating. Ball bearings. UL Recognized and CSA Certified.

ItemPool and Spa Pump Motor
Motor ApplicationPump
Motor Sub ApplicationPool and Spa Pump
Motor DesignPermanent Split Capacitor
Motor Enclosure DesignOpen Dripproof
HP2
Nameplate RPM3450
Frame56Y
Motor Shaft RotationCCWSE
Voltage230
Full Load Amps10
Phase1
Hz60
Motor Mounting TypeFace
Motor BearingsBall
FinishBlack
Motor Flange MaterialAluminum
ShaftThreaded 1/2-20 UNF-2A RH (External) and 1/4-20 UNC-2B LH (Internal)
Shaft Material303 Stainless Steel
Motor Thermal ProtectionAuto
Motor Service Factor1.1
Ambient Temperature50 Degrees C
Shaft Dia.5/8 in
Shaft Length7/16 in
Ins. ClassB
RPM Range3001-3600
Motor Efficiency GroupStandard Efficient
StandardsCSA Certified, UL Recognized
Voltage Compatibility115/230, 120/240, 230, 240
