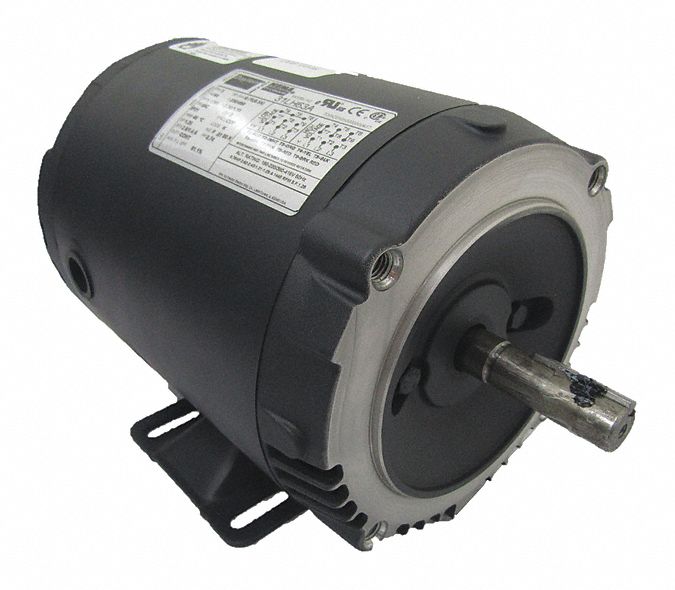

Dayton 3/4 HP, General Purpose Motor, 3-Phase, 1760 Nameplate RPM, 230/460 Voltage, 56C Frame - 31LH63

DaytonSKU: C2777016
MPN : 31LH63
Weight : 24.5 lb
filler

Price:
$259.87 $316.91

Availability : Usually Ships in 1-3 Business Days

Motor complies with 2015 efficiency legislation for small-frame motors.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor Design3-Phase
Motor Enclosure DesignOpen Dripproof
HP3/4
Nameplate RPM1760
Frame56C
Voltage230/460
Hz60
Phase3
Full Load Amps2.3/1.2
No. of Speeds1
Motor Mounting TypeFace/Base
Motor Mounting PositionHorizontal
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1.25
Motor BearingsBall
Motor Frame MaterialRolled Steel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.5/8 in
Shaft Length1 7/8 in
Length Less Shaft8 1/2 in
Overall Length11 1/8 in
Motor Shaft DesignKeyed
StandardsCE, CSA, UL
DutyContinuous
Motor Efficiency GroupPremium Efficient
Nominal Efficiency81.1 %
Inverter RatedYes
IncludesMIMI 8S470A, Shaft Key
Manufacturers Warranty Length1 yr
Green Environmental AttributeProduct Contributes To Reducing Energy Consumption
Green Certification or Other RecognitionNEMA Premium(R) Rated
