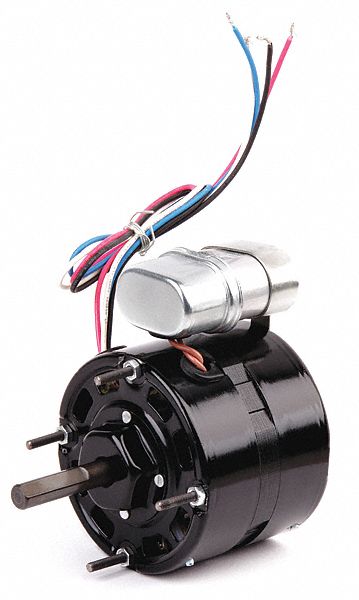

This HVAC motor includes a capacitor. It features a permanent split capacitor design, and can deliver higher performance, efficiency, and starting torque than standard 3.3 inch shaded pole motors.
| Item | HVAC Motor |
| Motor Design | Permanent Split Capacitor |
| HP | 1/20 |
| No. of Speeds | 3 |
| Voltage | 115 |
| Motor Shaft Rotation | CCWSE |
| Motor Enclosure Design | Open Air-Over |
| Motor Mounting Type | Stud |
| Shaft Dia. | 1/2 in |
| Shaft Length | 2 1/8 in |
| Number of Shafts | 1 |
| Motor Thermal Protection | Auto |
| Nameplate RPM | 1550 |
| Phase | 1 |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Frame | 4.4 |
| Motor Bearings | Sleeve |
| Full Load Amps | 1 |
| Duty | Continuous |
| Motor Service Factor | 1 |
| Hz | 60 |
| Body Dia. | 4.4 in |
| Ins. Class | B |
| Max. Ambient Temp. | 40 Degrees C |
| Length Less Shaft | 3 13/16 in |
| Mounting Stud Location | 4/Shaft End |
| Stud/Base Mtg. Pattern | 2-3/4 in x 2-3/4 in |
| Motor Shaft Design | Flat |
| Application | HVAC/R |
| Cord Length | 16 in |
| Includes | Capacitor |
| Standards | CSA Certified (244617), UL Recognized (E37403) |
| Mounting Pattern | 2-3/4 x 2-3/4 |
