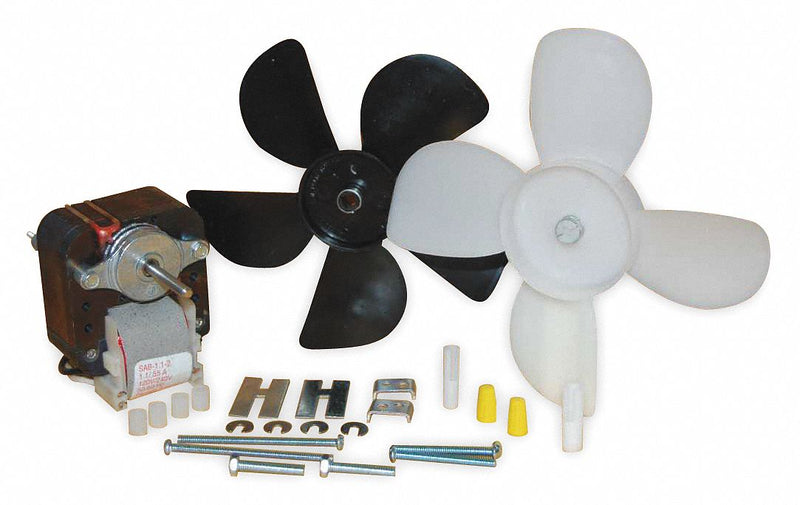

Kit includes 6" and 5-9/16" dia. fan blades and has multiple mounting options.
| Item | C-Frame Motor Kit |
| Motor Application | HVAC/R |
| Motor Sub Application | Direct Drive Fan/Blower |
| Motor Design | Shaded Pole |
| Motor Enclosure Design | Open Air-Over |
| HP | 1/45 |
| No. of Speeds | 1 |
| Nameplate RPM | 3000 |
| Frame | Non-Standard |
| Voltage | 115/230 |
| Hz | 60/50 |
| Phase | 1 |
| Full Load Amps | 1.1/0.55 |
| Motor Mounting Type | Stud |
| Motor Thermal Protection | Auto |
| Ins. Class | B |
| Motor Service Factor | 1 |
| Motor Bearings | Sleeve |
| Ambient Temperature | 40 Degrees C |
| Max. Ambient Temp. | 40 Degrees C |
| Motor Shaft Rotation | CW/CCW |
| Length Less Shaft | 1 5/16 in |
| Shaft Dia. | 3/16 in |
| Shaft Length | 1 5/16 in |
| Stack Size | 1 1/8 in |
| Stud Quantity | 2 |
| Mounting Stud Location | Opposite Shaft End |
| Mounting Holes | 4 |
| O.C. Mounting | 1 7/8 in |
| Duty | Continuous |
| Standards | CSA Certified (701603), UL Recognized (E40077) |
| Includes | (2) Fan Blades, (2) H-Brackets, Hardware and Shaft Adapters to Fit 1/4 and 5/16 in Bores and Hubless Blades |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 115, 115/230, 120, 120/240, 230, 240 |
