12VDC Permanent-Magnet Parallel-Shaft Gearmotors,Enclosure: totally enclosed nonventilated Gearcase: die-cast zinc Lubrication: grease-filled Gears: heat-treated steel and acetal Bearings: porous bronze sleeve on case; ball on motor Mounting: all-position Rotation: reversible Thermal protection: none Brushes: externally replaceable Ambient: 40C Seals: O-ring type on output shaft UL and C-UL Recognized
| Item | DC Gearmotor |
| Gearmotor Type | DC Gearmotor |
| Gearmotor Voltage | 12 V DC |
| Max. Torque | 50 in.-lb. |
| Gearmotor Shaft Type | Single |
| Gearmotor Shaft Orientation | Parallel |
| Rear Shaft Encoder/Pulse Generator Mounting | No |
| Nameplate RPM | 17 |
| Gearmotor Enclosure | Totally Enclosed Nonventilated |
| Gearmotor Mounting Position | All Angle |

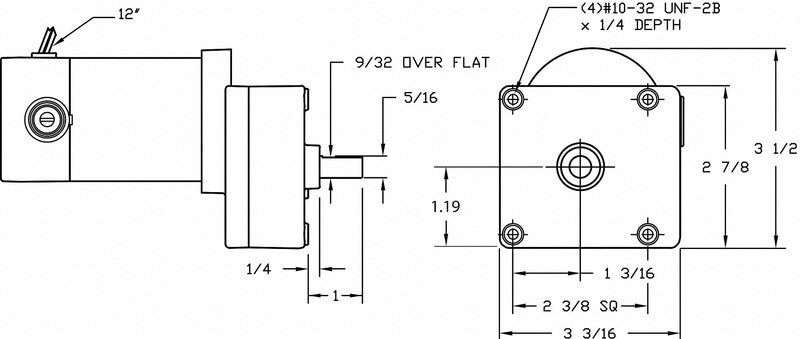

| Length Less Shaft | 5-5/8" |
| Reversible Shaft Output | No |
| Overhung Load | 50 lb. |
| Input HP | 1/30 |
| Gear Ratio | 1 |
| Full Load Amps | 2.1 |
| Insulation Class | F |
| Thermal Protection | None |
| Max. Ambient Temp. | 40 Degrees C |
| Gearmotor Rotation | CW/CCW |
| Motor Type | Permanent Magnet DC |
| Overall Length | 6-3/8" |
| Keyway Size Type | Flat |
| Shaft Dia. (Dimension U) | 5/16" |
| Shaft Length (Dimension V) | 3/4" |
| Bearings | Porous Bronze Sleeve on Case, Ball on Motor |
| Lubrication | Grease Filled |
| Brushes | Externally Replaceable |
| Finish | Unpainted |
| Gear Material | Acetyl/Steel |
| Gear Case | Die Cast Zinc |
| Seals | O-Ring Type on Output Shaft |
| Housing Material | Die Cast Zinc |
| Standards | C-UL Recognized, UL Recognized |
| Replacement Brushes | 6YHY4 |
