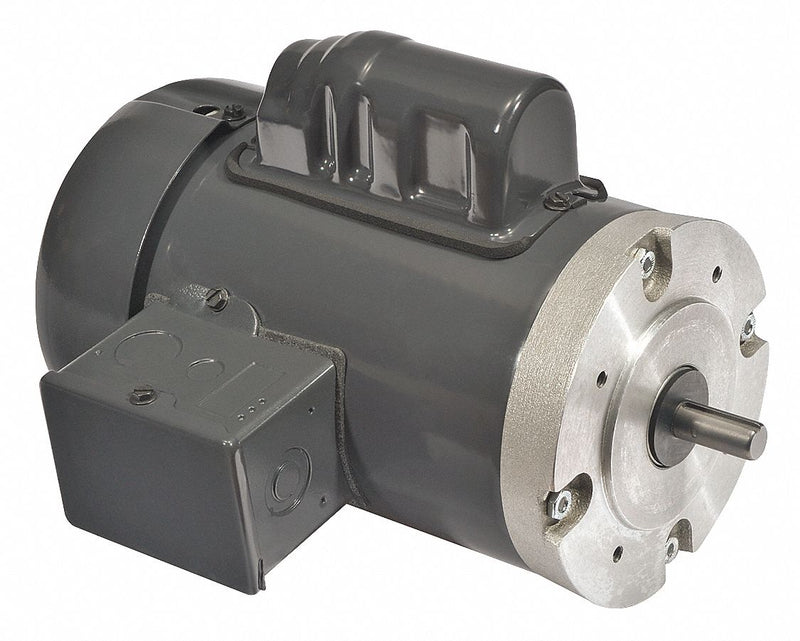

Dayton 1/3 HP, General Purpose Motor, Capacitor-Start, 1725 Nameplate RPM, 115/230 Voltage, 42CZ Frame - 1K059

DaytonSKU: C1545289
MPN : 1K059
Weight : 18.6 lb
filler

Price:
$488.47 $595.70

Availability : Usually Ships in 1-3 Business Days

Suitable for use in dusty, dirty, nonhazardous environments, this motor can be used with speed reducers, pumps, blowers, conveyors, and other equipment that mounts directly to a NEMA C-face motor.

ItemGeneral Purpose Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
HP1/3
Nameplate RPM1725
Frame42CZ
Voltage115/230
Hz60
Phase1
Full Load Amps6.2/3.1
No. of Speeds1
Motor Mounting TypeFace
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1
Motor BearingsBall
Motor Frame MaterialSteel
Max. Ambient Temp.40 Degrees C
Motor Shaft RotationCW/CCW
Shaft Dia.1/2 in
Shaft Length1 1/8 in
Length Less Shaft10 1/4 in
Overall Length9 5/8 in
Motor Shaft DesignKeyed
StandardsCSA (258501), UL (E47479)
DutyContinuous
Motor Efficiency GroupStandard Efficient
Nominal Efficiency61.2 %
Manufacturers Warranty Length1 yr
