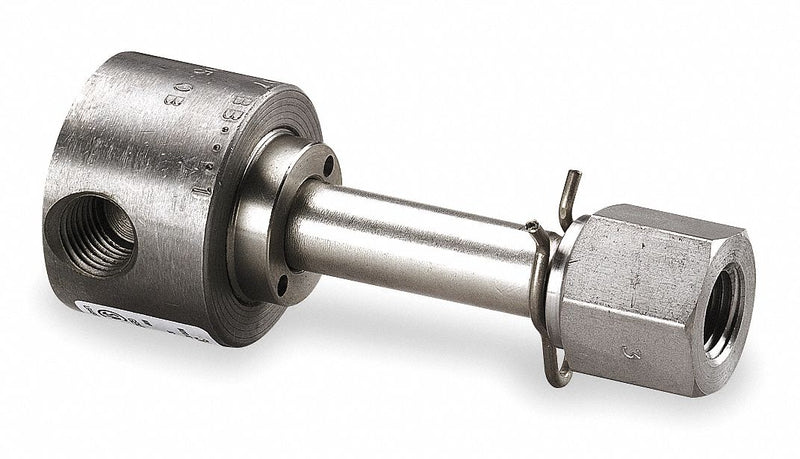

Dayton Stainless Steel Solenoid Valve Less Coil, 2-Way Valve Design, Normally Open Valve Configuration - 8049

DaytonSKU: C1935965
MPN : 8049
Weight : 1.0 lb

filler

Price:
$160.28 $258.51

Availability : Usually Ships in 15 Business Days

Solenoid Valve Less Coil; Solenoid Valve Product Group: Solenoid Valve Less Coil; Valve Ways and Positions: 2-Way; Valve Configuration: Normally Open; Media - Valves: Air, Steam, Water; Pipe Size - Valves: 1/4 in; Min. Operating Pressure Differential: 0 psi; Max. Operating Pressure Differential Air/Inert Gas: 75 psi; Max. Operating Pressure Differential Light Oil: 75 psi; Max. Operating Pressure Differential Water: 75 psi; Environmental Rating - Valves: Corrosive, Indoor, Outdoor; Coefficient of Volume: 0.17; Body Material - Valves: Stainless Steel; Seal Material - Valves: Buna-N; Orifice Dia.: 3/32"; Safe Working Water Pressure: 500 psi; Operation Type: Direct Acting; Flow Range: 0.22 to 1.9 gpm; Airflow: Up to 12.5 scfm; Max. Fluid Temp.: 180 Degrees F; Overall Length: 1-1/2"; Overall Height: 4"; For Use With: Dayton Solenoid Coils

ItemSolenoid Valve Less Coil
Solenoid Valve Product GroupSolenoid Valve Less Coil
Valve Ways and Positions2-Way
Valve ConfigurationNormally Open
Media - ValvesAir, Steam, Water
Pipe Size - Valves1/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Air/Inert Gas75 psi
Max. Operating Pressure Differential Light Oil75 psi
Max. Operating Pressure Differential Water75 psi
Environmental Rating - ValvesCorrosive, Indoor, Outdoor
Coefficient of Volume0.17
Body Material - ValvesStainless Steel
Seal Material - ValvesBuna-N
Orifice Dia.3/32"
Safe Working Water Pressure500 psi
Operation TypeDirect Acting
Flow Range0.22 to 1.9 gpm
AirflowUp to 12.5 scfm
Max. Fluid Temp.180 Degrees F
Overall Length1-1/2"
Overall Height4"
For Use WithDayton Solenoid Coils
