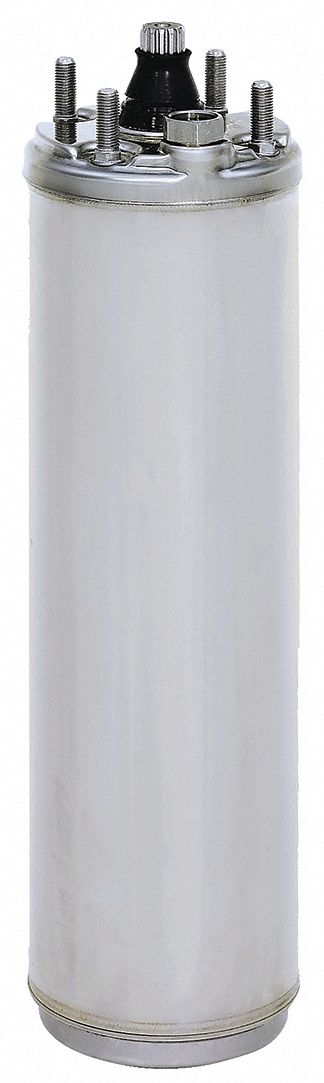

Franklin 1/2 HP Deep Well Submersible Pump Motor,Split-Phase,3450 Nameplate RPM,115 Voltage - 2445049004S
Availability : Usually Ships in 1-3 Business Days
Deep Well Submersible Pump Motor; Motor Application: Pump; Motor Sub Application: Deep Well Submersible Pump; Motor Design: Split-Phase; Motor Enclosure Design: Totally Enclosed Nonventilated; HP: 1/2; Nameplate RPM: 3450; Voltage: 115; Phase: 1; Full Load Amps: 10; Max. SF Amps: 12; Hz: 60; Motor Service Factor: 1.6; Max. Ambient Temp.: 86 Degrees F; Thrust Rating: 300 lb; Number of Wires: 2; Motor Thermal Protection: Auto; Motor Shaft Rotation: CCWSE; Dia.: 4 in; Diaphragm Type: Pressure Equalizing; Shaft Material: Splined Stainless Steel; Shell Material: Corrosion Resistant Stainless Steel; Stator Type: Hermetically Sealed; Lead Length: 48 in; Height: 9 1/2 in; Starter Required: No; Overload Relay Required: No; RPM Range: 3001-3600
| Item | Deep Well Submersible Pump Motor |
| Motor Application | Pump |
| Motor Sub Application | Deep Well Submersible Pump |
| Motor Design | Split-Phase |
| Motor Enclosure Design | Totally Enclosed Nonventilated |
| HP | 1/2 |
| Nameplate RPM | 3450 |
| Voltage | 115 |
| Phase | 1 |
| Full Load Amps | 10 |
| Max. SF Amps | 12 |
| Hz | 60 |
| Motor Service Factor | 1.6 |
| Max. Ambient Temp. | 86 Degrees F |
| Thrust Rating | 300 lb |
| Number of Wires | 2 |
| Motor Thermal Protection | Auto |
| Motor Shaft Rotation | CCWSE |
| Dia. | 4 in |
| Diaphragm Type | Pressure Equalizing |
| Shaft Material | Splined Stainless Steel |
| Shell Material | Corrosion Resistant Stainless Steel |
| Stator Type | Hermetically Sealed |
| Lead Length | 48 in |
| Height | 9 1/2 in |
| Starter Required | No |
| Overload Relay Required | No |
| RPM Range | 3001-3600 |
