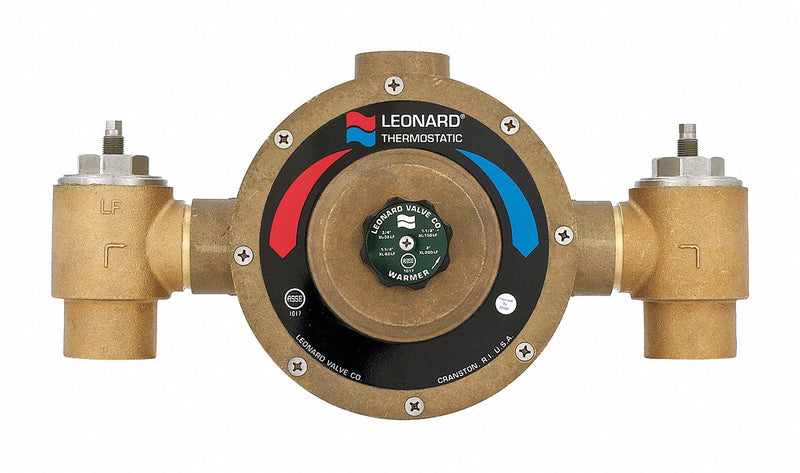

Leonard 2 in Sweat Inlet Type Mixing Valve, Lead Free bronze, 10 to 205 gpm - LV-985-SW-LF-RF

Leonard ValveSKU: C1946297
MPN : LV-985-SW-LF-RF
Weight : 51.0 lb
filler

Price:
$2,080.25 $2,536.89

Availability : Usually Ships in 10 Business Days

Single valve master mixing valve. Copper encapsulated thermostat. Ideal for industrial and commercial applications and certified for use in potable water applications.

ItemMixing Valve
Body MaterialLead Free bronze
Flow Rate10 to 205 gpm
Inlet TypeSweat
Outlet TypeSweat
Inlet Size2 in
Outlet Size2 in
Temp. Range95 Degrees to 135 Degrees F
Max. Pressure125 psi
Overall Height8 in
Overall Width9 3/8 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
For Use WithDomestic Hot Water Applications
IncludesCheck Stop, Wall Support
StandardsASSE 1017, Lead Free
ComplianceLead Free
