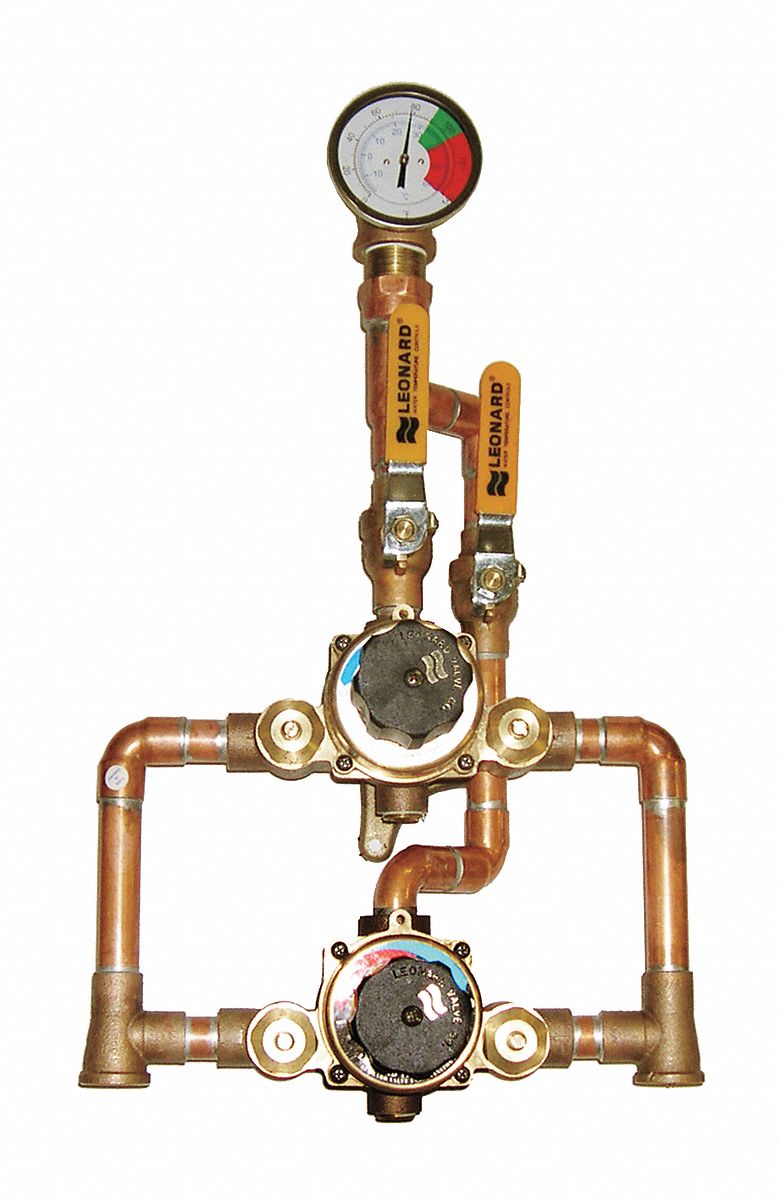

Leonard 3/4 in NPT Inlet Type Mixing Valve, Lead Free bronze, 1 to 42 gpm - TM-420B-LF-DT-RF
filler
Availability : Usually Ships in 10 Business Days
2 valve system for low and high water demands. Bi-metal thermostat. Ideal for industrial and commercial applications and certified for use in potable water applications.
| Item | Mixing Valve |
| Body Material | Lead Free bronze |
| Flow Rate | 1 to 42 gpm |
| Inlet Type | NPT |
| Outlet Type | NPT |
| Inlet Size | 3/4 in |
| Outlet Size | 1 in |
| Temp. Range | 60 Degrees to 200 Degrees F |
| Max. Pressure | 125 psi |
| Overall Height | 21 3/4 in |
| Overall Width | 10 in |
| Inlet Temperature (Cold) | 40 Degrees to 85 Degrees F |
| Inlet Temperature (Hot) | 120 Degrees to 200 Degrees F |
| For Use With | Domestic Hot Water Applications |
| Includes | Check Stop, Wall Support |
| Standards | ASSE 1017, Lead Free |
| Compliance | Lead Free |
