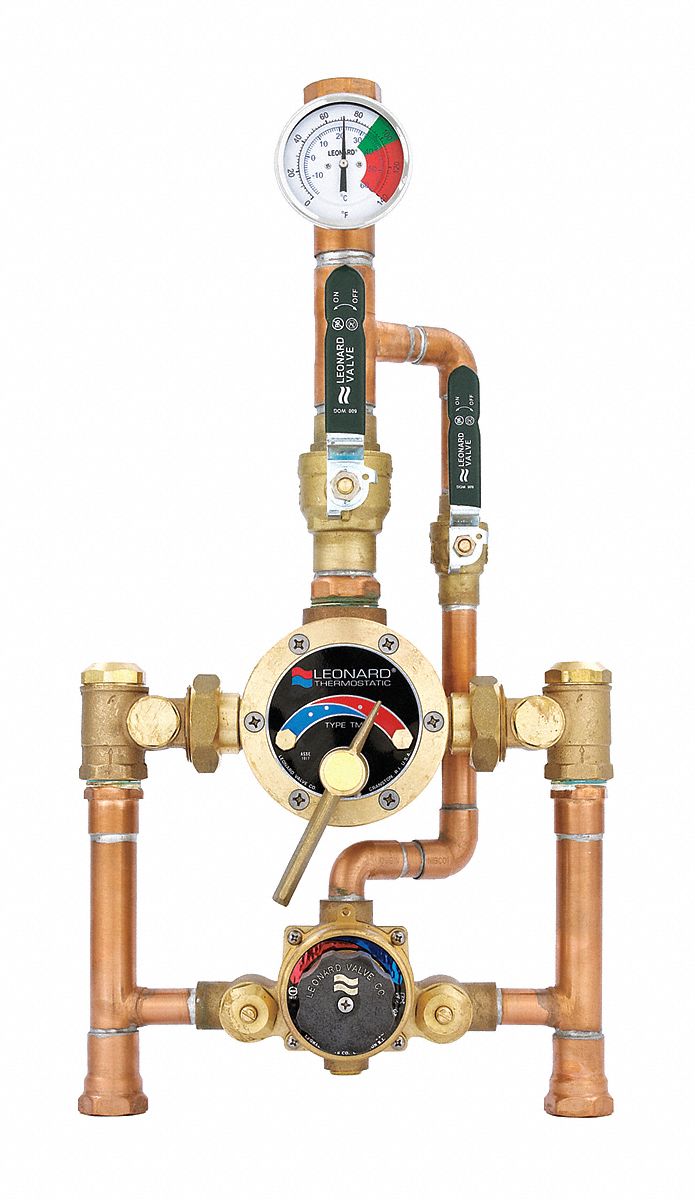

Leonard 1 1/4 in NPT Inlet Type Mixing Valve, Lead Free bronze, 1 to 103 gpm - TM-920B-LF-DT-RF

Leonard ValveSKU: C1946302
MPN : TM-920B-LF-DT-RF
Weight : 37.0 lb

filler

Price:
$3,726.36 $7,452.70

Availability : Usually Ships in 10 Business Days

2 valve system for low and high water demands. Bi-metal thermostat. Ideal for industrial and commercial applications and certified for use in potable water applications.

ItemMixing Valve
Body MaterialLead Free bronze
Flow Rate1 to 103 gpm
Inlet TypeNPT
Outlet TypeNPT
Inlet Size1 1/4 in
Outlet Size1 1/4 in
Temp. Range60 Degrees to 200 Degrees F
Max. Pressure125 psi
Overall Height23 in
Overall Width10 in
Inlet Temperature (Cold)40 Degrees to 85 Degrees F
Inlet Temperature (Hot)120 Degrees to 200 Degrees F
For Use WithDomestic Hot Water Applications
IncludesCheck Stop, Wall Support
StandardsASSE 1017, Lead Free
ComplianceLead Free
