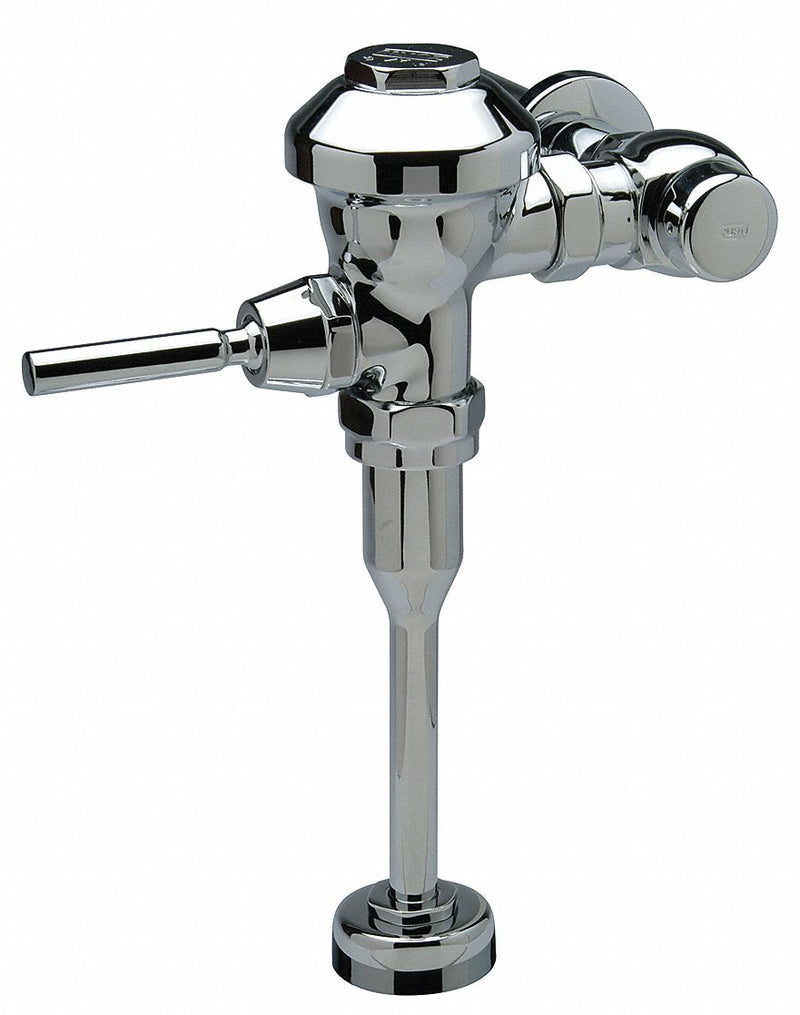

Manual urinal flush valves are sized to fit urinals. These hand-activated valves have a spud coupling for attaching to a urinal spud.,Manual flush valves are hand-activated valves for flushing tankless toilets and urinals. Also known as manual flushometers, these flow-control devices are a cost-effective alternative to automatic valves and have a lever or button that requires no power source to operate.
| Item | Manual Flush Valve |
| Flush Valve Location | Exposed |
| Fixture Connection | Top Spud |
| Brand and Series | Zurn |
| For Use With Category | Urinals |
| Flush Mode | Single Flush |
| Gallons per Flush | 1 |
| Flush Valve Design | Diaphragm |
| Rough-In | 11 1/2 in |
| Spud Coupling | 1 1/2 in |
| Inlet Size | 1 in IPS |
| Pressure Range | 25 to 80 psi |
| Finish | Chrome Plated |
| Includes | Control Stop Has Internal Siphon-Guard Protection, Sweat Solder Kit, Vandal Resistant Cap, Wall Flange |
| Manufacturers Warranty Length | 3 yr |
| Standards | A 112.192, A112.195, A112.196, ASSE 1037 and 1001, CSA B 125.1, Federal Spec WWP541ASME A112.181/, MIL.V.29193 |
| Green Environmental Attribute | Product Contributes To Reducing Water Consumption |
