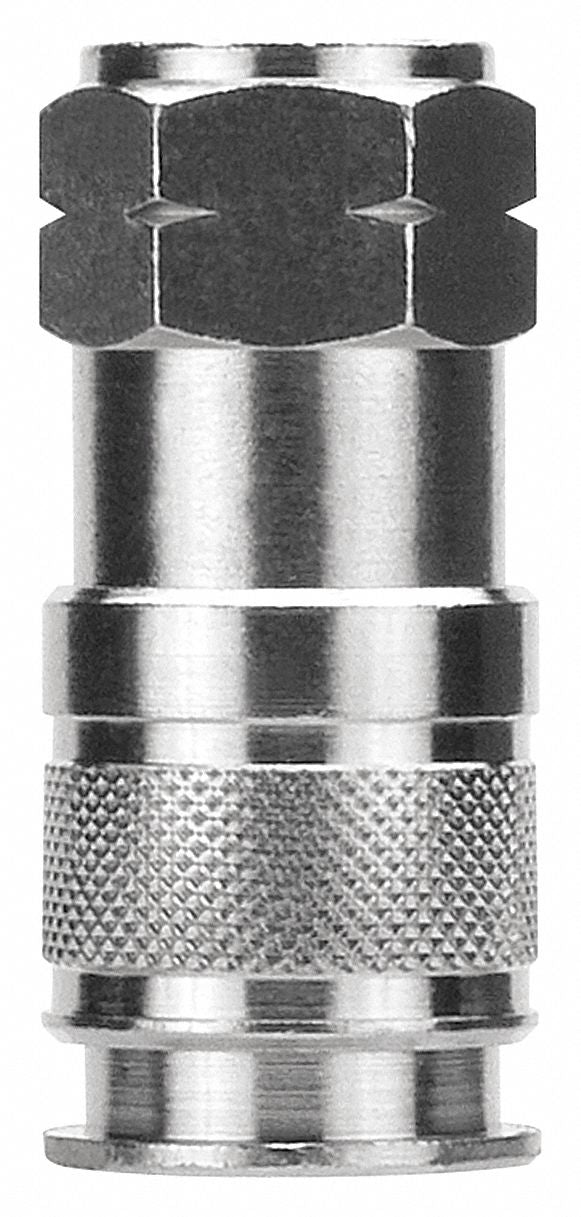

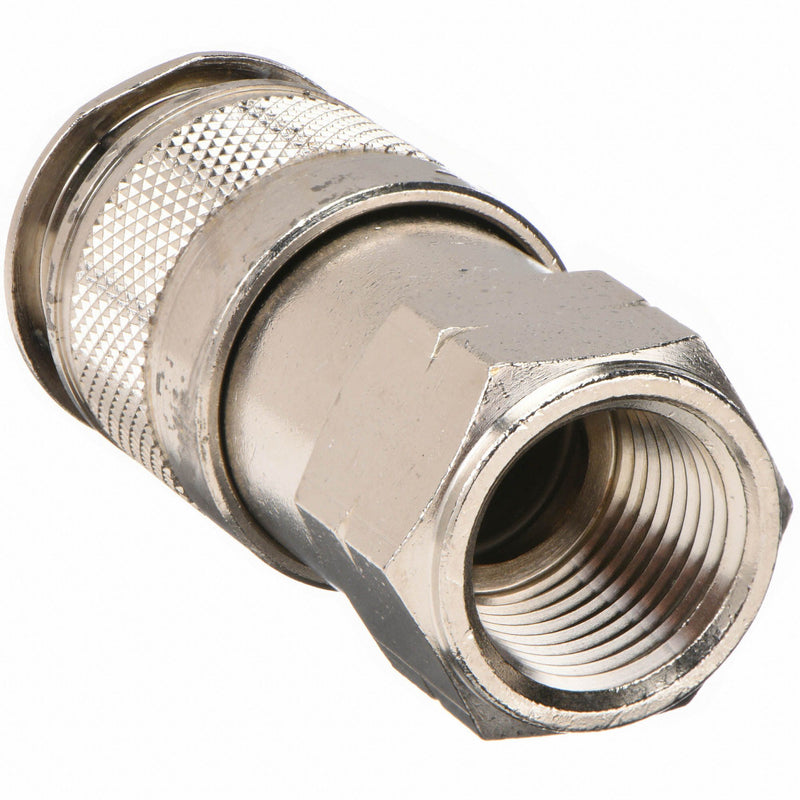

Alpha Fittings Quick Connect Hose Coupling, Universal, Brass, Socket - 80192-08
Availability : Usually Ships in 27 Business Days
Universal interchange brass quick-connect air coupling bodies are the female end of coupling sets. Also called sockets, they accept coupling plugs (nipple or male ends) to connect tools to air, water, or fluid lines. Brass is a strong, highly conductive metal that resists corrosion and maintains durability at high temperatures. Brass is softer than other metal plugs and sockets for better connections and compatibility with copper or zinc piping.,Universal interchange quick-connect air couplings are designed to work with other interchanges accepting multiple styles of nipples, including industrial, Tru-Flate, and ARO. The push-to-connect style has a protective sleeve that slides forward until the plug ejects. The socket's shut-off valve eliminates air leaks in automotive service and repair, factory automation, and construction applications.
| Item | Quick Connect Hose Coupling |
| Interchange Type | Universal |
| Material | Brass |
| Coupling Component | Socket |
| Hose Fitting Gender | Female |
| Connection Type | NPT |
| Hose Fitting Size | 1/2 in |
| Coupling Size | 1/2 in |
| Finish/Coating | Nickel Plated |
| Barbed | No |
| Max. Working Pressure @ 70 F | 250 psi |
| Max. Flow Rate | 595 lpm |
| Coupling Locking Type | Sleeve |
| Seal Material | Nitrile |
| Includes Valve | Yes |
| Valve Type | Poppet |
| Thread Size | 1/2"-14 |
| Overall Length | 2 21/64 in |
| Color | Silver |
| Temp. Range | 0 Degrees to 160 Degrees F |
| For Use With | Compressed Air Systems |
| Fitting Type | FNPT |
| Includes | Nickel-Plated Brass, Protected Seal, Stainless Steel Locking Balls |
| Max. Outside Dia. | 15/16 in |
