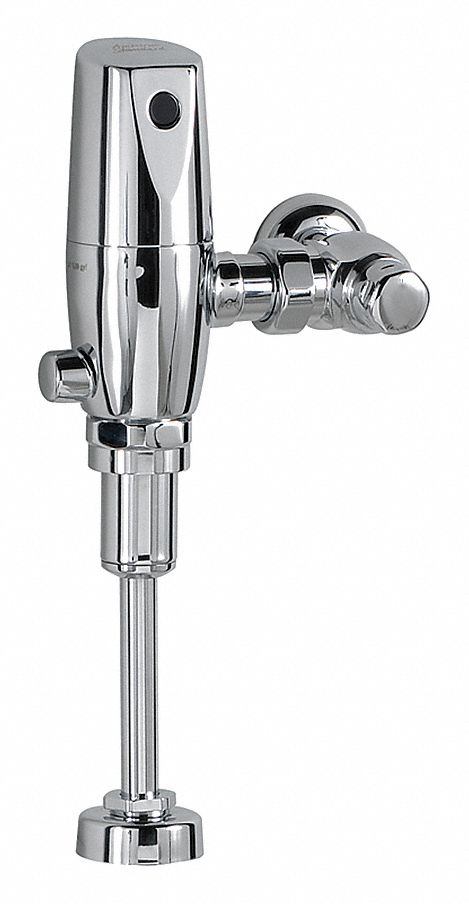

American Standard Exposed, Top Spud, Automatic Flush Valve, For Use With Category Urinals, 0.125 Gallons per Flush - 6063013.002
Availability : Usually Ships in 5-7 Business Days
Automatic urinal flush valves are sized to fit urinals. These sensor-operated valves have a spud coupling for attaching to a urinal spud.,Automatic flush valves are sensor-operated valves for flushing tankless toilets and urinals. Also known as automatic flushometers, these flow-control devices don't require user contact to activate, so they help decrease the spread of germs. Their sensor automatically triggers flushing after a set time period or once a user has moved out of sensing range. They're ideal for ensuring flushing in public restrooms and high-use areas.
| Item | Automatic Flush Valve |
| Flush Valve Location | Exposed |
| Fixture Connection | Top Spud |
| Brand and Series | American Standard Selectronic(R) |
| For Use With Category | Urinals |
| Basic Power Source | Battery |
| Battery Life | 4 yr @ 4000 Flushes/Month |
| Flush Mode | Single Flush |
| Gallons per Flush | 0.125 |
| Flush Valve Design | Piston |
| Rough-In | 11 1/2 in |
| Spud Coupling | 3/4 in |
| Inlet Size | 3/4 in IPS |
| Sensor Range | 15-3/4 in to 31-1/2 in |
| Pressure Range | 20 to 80 psi |
| Finish | Chrome |
| Includes | 3/4 in I.P.S. Angle Stop with Back-Flow Protection, Cover Tube, Sweat Solder Kit, Vandal-Resistant Cap, Wall Flange |
| Manufacturers Warranty Length | 5 yr |
| Standards | ADA, ANSI/ASME 112.192, ASSE 1037 |
| Green Environmental Attribute | Product Contributes To Reducing Water Consumption |
| Green Certification or Other Recognition | WaterSense Certified |
