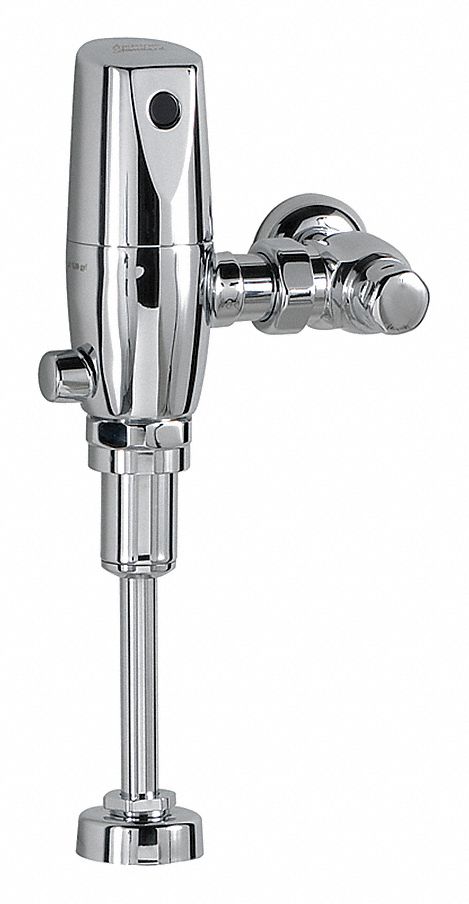

American Standard Exposed, Top Spud, Automatic Flush Valve, For Use With Category Urinals, 0.5 Gallons per Flush - 6063051.002

American StandardSKU: C1936090
MPN : 6063051.002
Weight : 8.1 lb
filler

Price:
$432.38 $527.29

Availability : Usually Ships in 5-7 Business Days

Automatic urinal flush valves are sized to fit urinals. These sensor-operated valves have a spud coupling for attaching to a urinal spud.,Automatic flush valves are sensor-operated valves for flushing tankless toilets and urinals. Also known as automatic flushometers, these flow-control devices don't require user contact to activate, so they help decrease the spread of germs. Their sensor automatically triggers flushing after a set time period or once a user has moved out of sensing range. They're ideal for ensuring flushing in public restrooms and high-use areas.

ItemAutomatic Flush Valve
Flush Valve LocationExposed
Fixture ConnectionTop Spud
Brand and SeriesAmerican Standard Selectronic(R)
For Use With CategoryUrinals
Basic Power SourceBattery
Battery Life4 yr @ 4000 Flushes/Month
Flush ModeSingle Flush
Gallons per Flush0.5
Flush Valve DesignPiston
Rough-In11 1/2 in
Spud Coupling3/4 in
Inlet Size3/4 in IPS
Sensor Range15-3/4 in to 31-1/2 in
Pressure Range20 to 80 psi
FinishChrome
Includes3/4 in I.P.S. Angle Stop with Back-Flow Protection, Cover Tube, Sweat Solder Kit, Vandal-Resistant Cap, Wall Flange
Manufacturers Warranty Length5 yr
StandardsADA, ANSI/ASME 112.192, ASSE 1037
Green Environmental AttributeProduct Contributes To Reducing Water Consumption
Green Certification or Other RecognitionWaterSense Certified
