American StandardSKU: C1936182
MPN : 6045051.002
Weight : 5.7 lb

filler
Price:
$158.84 $193.71

Availability : Usually Ships in 5-7 Business Days

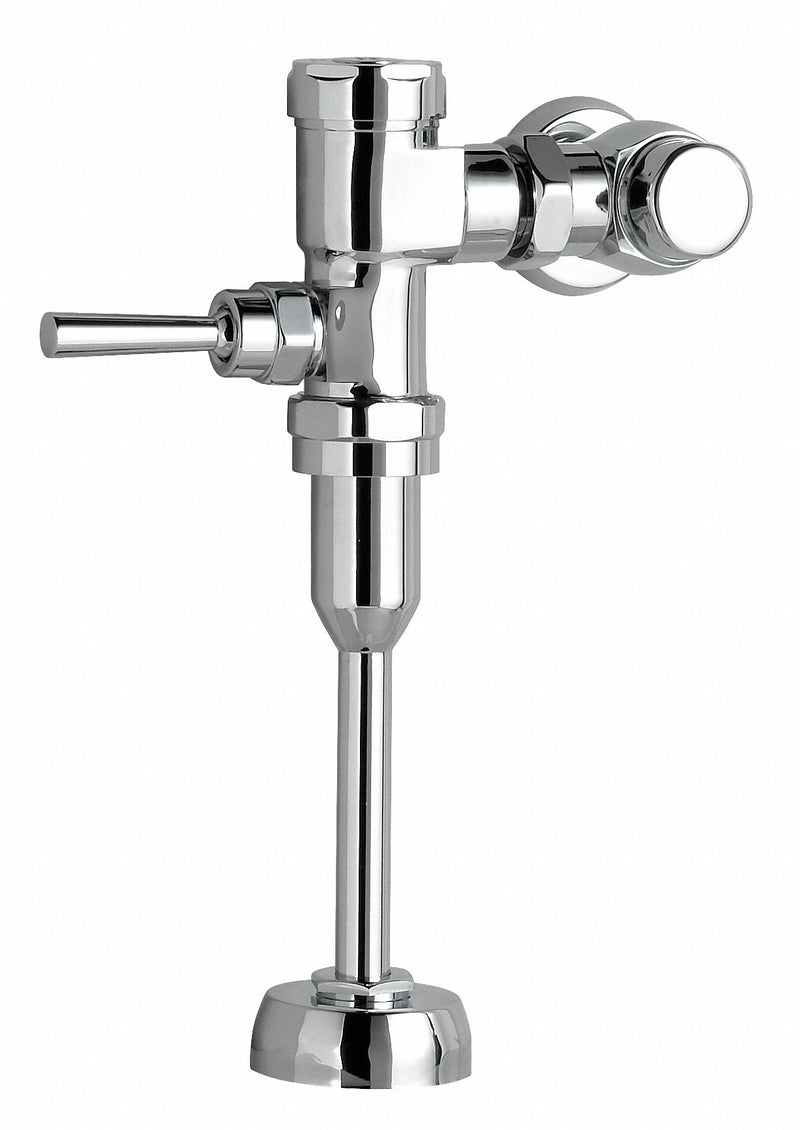

Manual urinal flush valves are sized to fit urinals. These hand-activated valves have a spud coupling for attaching to a urinal spud.,Manual flush valves are hand-activated valves for flushing tankless toilets and urinals. Also known as manual flushometers, these flow-control devices are a cost-effective alternative to automatic valves and have a lever or button that requires no power source to operate.

ItemManual Flush Valve
Flush Valve LocationExposed
Fixture ConnectionTop Spud
Brand and SeriesAmerican Standard
For Use With CategoryUrinals
Flush ModeSingle Flush
Gallons per Flush0.5
Flush Valve DesignPiston
Rough-In11 1/2 in
Spud Coupling3/4 in
Inlet Size3/4 in IPS
Pressure Range20 to 80 psi
FinishChrome Plated
IncludesCover Tube, Sweat Solder Kit, Wall Flange
Manufacturers Warranty Length5 yr
StandardsADA, ANSI/ASME 112.192, ASSE 1037
Green Environmental AttributeUrinal Uses 0.5 gpf or Less
