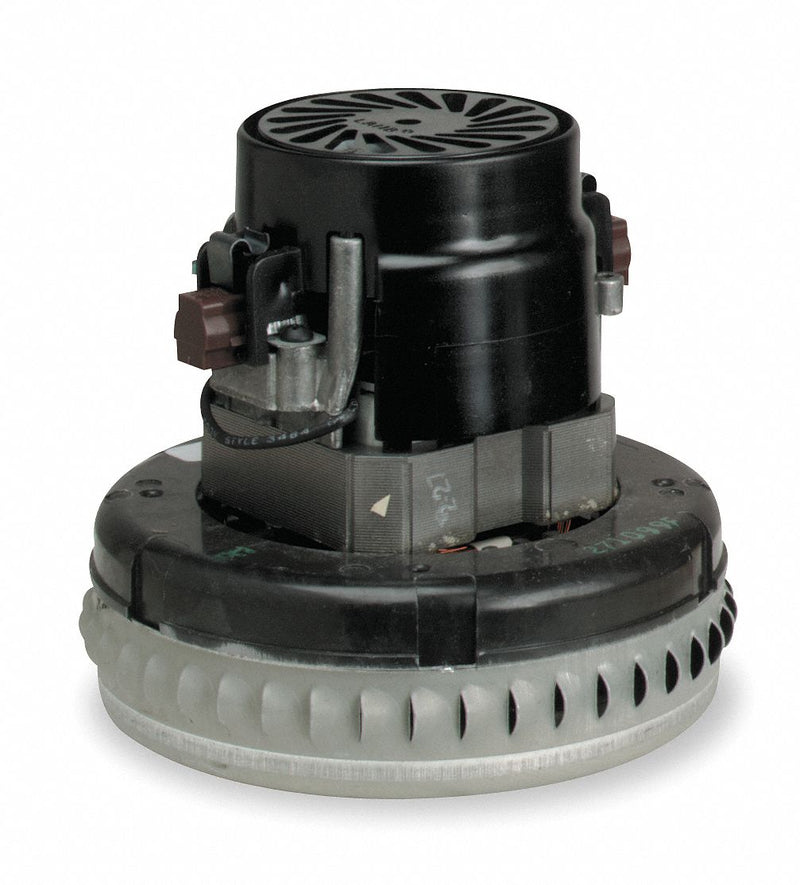

Ametek Lamb Peripheral Bypass Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 1 - 116196-00

Ametek LambSKU: C1561025
MPN : 116196-00
Weight : 3.9 lb

filler

Price:
$112.15 $180.89

Availability : Usually Ships in 26 Business Days

Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargePeripheral Bypass
Blower Stages1
No. of Speeds1
Motor Enclosure DesignOpen
CFM @ 2-In. Orifice133
Vacuum (H2O Sealed)49.5
Voltage120
Hz60/50
Phase1
Max. Amps7 A
Max. Air Watts291 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7 in
Overall Height5 3/16 in
Mounting BracketsThermoset
DutyIntermittent
Average Life500 hr
StandardsCSA Certified (LR31393), UL Recognized (E47185)
Replacement Brushes2UV64
