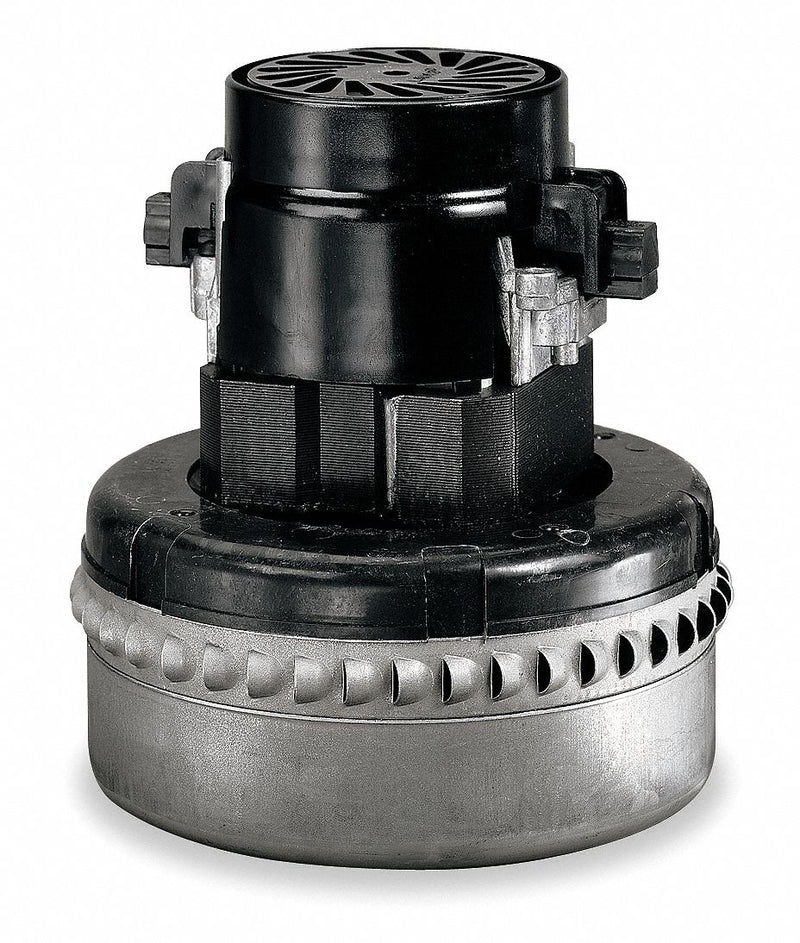

Ametek Lamb Peripheral Bypass Vacuum Motor, 5.7 in Body Dia., 36V DC Voltage, Blower Stages: 2 - 116156-00
filler
Availability : Usually Ships in 20-30 Business Days
Designed to move clean and dry air. Units with air-sealed bearings (see footnote 72) provide added protection against dirt and moisture. Units with plastic housings are designed for light-duty applications
| Item | Vacuum Motor |
| Motor/Blower Type | Bypass |
| Discharge | Peripheral Bypass |
| Blower Stages | 2 |
| No. of Speeds | 1 |
| Motor Enclosure Design | Open Dripproof |
| CFM @ 2-In. Orifice | 70.7 |
| Vacuum (H2O Sealed) | 47.3 |
| Voltage | 36V DC |
| Phase | 1 |
| Max. Amps | 10.8 A |
| Max. Air Watts | 113 W |
| Motor Mounting Type | Lug |
| Motor Design | Universal AC/DC |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 5.7 in |
| Overall Height | 6 1/2 in |
| Mounting Brackets | Thermoset |
| Duty | Intermittent |
| Average Life | 500 hr |
| Standards | UL Recognized (E47185) |
| Replacement Brushes | Mfr. No. 833423-69 |
