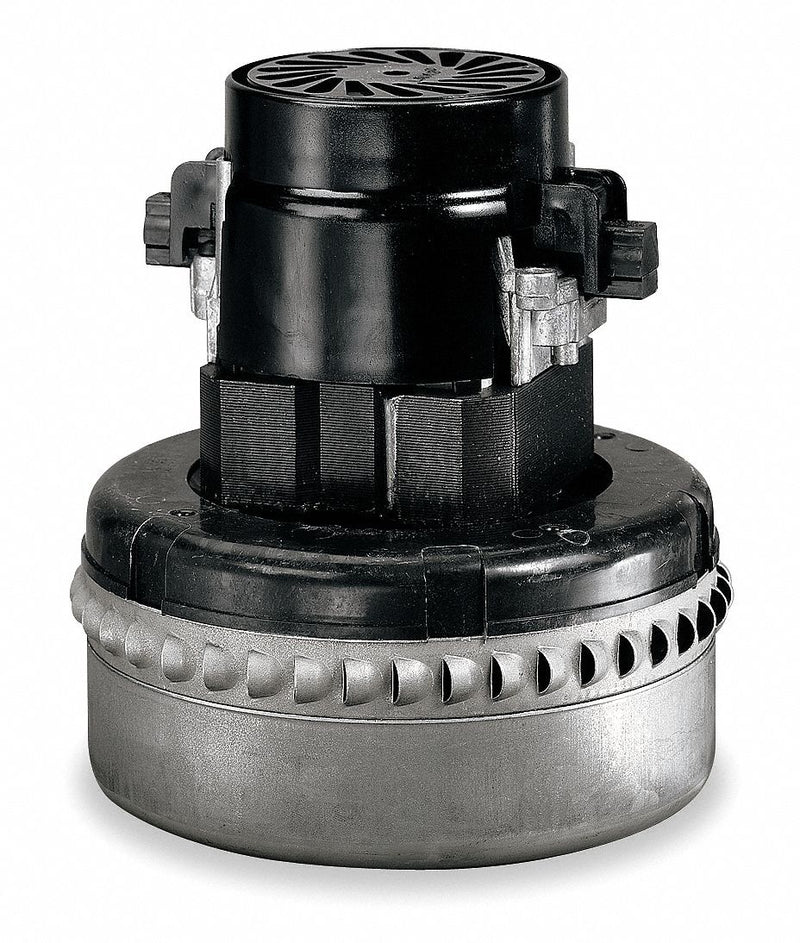

Ametek Lamb Peripheral Bypass Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 2 - 116493-50

Ametek LambSKU: C1561018
MPN : 116493-50
Weight : 4.9 lb

filler

Price:
$145.32 $177.22

Availability : Usually Ships in 20-30 Business Days

Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargePeripheral Bypass
Blower Stages2
No. of Speeds1
Motor Enclosure DesignOpen
CFM @ 2-In. Orifice100
Vacuum (H2O Sealed)90.3
Voltage120
Hz60/50
Phase1
Max. Amps9 A
Max. Air Watts313 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7 in
Overall Height6 5/16 in
Mounting BracketsThermoset
DutyIntermittent
Average Life500 hr
StandardsCSA Certified (LR31393), UL Recognized (E47185)
Replacement Brushes2UV64
