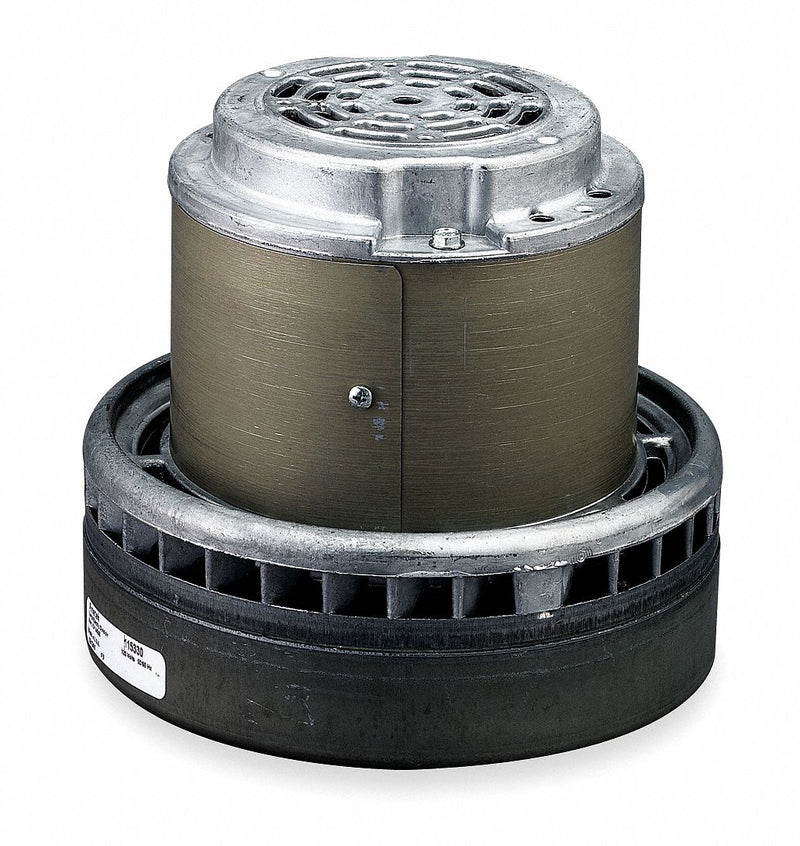

Ametek Lamb Peripheral Bypass Vacuum Motor, 7.2 in Body Dia., 120 Voltage, Blower Stages: 3 - 116118-00
filler
Availability : Usually Ships in 15-20 Business Days
Designed to move clean and dry air. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.
| Item | Vacuum Motor |
| Motor/Blower Type | Bypass |
| Discharge | Peripheral Bypass |
| Blower Stages | 3 |
| No. of Speeds | 1 |
| Motor Enclosure Design | Open |
| CFM @ 2-In. Orifice | 105 |
| Vacuum (H2O Sealed) | 131.4 |
| Voltage | 120 |
| Hz | 60/50 |
| Phase | 1 |
| Max. Amps | 14.7 A |
| Max. Air Watts | 447 W |
| Motor Mounting Type | Lug |
| Motor Design | Universal AC/DC |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 7.2 in |
| Overall Height | 7 13/16 in |
| Mounting Brackets | Metal |
| Duty | Intermittent |
| Average Life | 700 hr |
| Standards | CSA Certified (LR31393), UL Recognized (E47185) |
| Replacement Brushes | 2XB23 |
