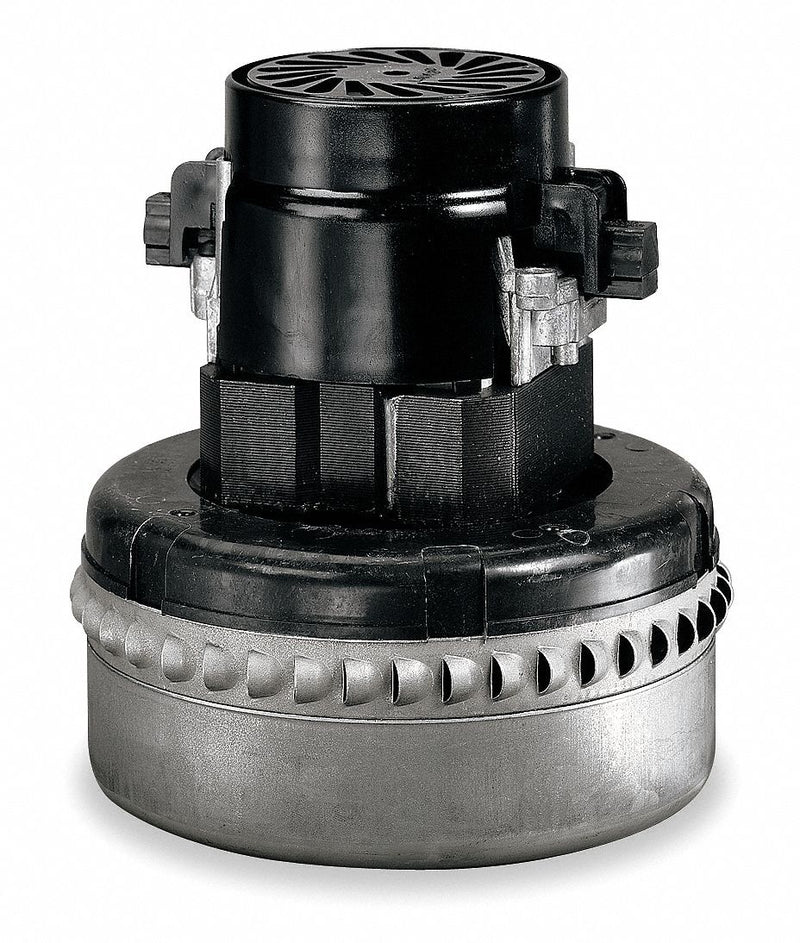

Ametek Lamb Peripheral Bypass Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 3 - 116566-13
Availability : Usually Ships in 20-30 Business Days
Vacuum Motor; Motor/Blower Type: Bypass; Discharge: Peripheral Bypass; Blower Stages: 3; No. of Speeds: 1; Motor Enclosure Design: Open; CFM @ 2-In. Orifice: 99; Vacuum (H2O Sealed): 117.4; Voltage: 120; Hz: 60/50; Phase: 1; Max. Amps: 10.7 A; Max. Air Watts: 368 W; Motor Mounting Type: Lug; Motor Design: Universal AC/DC; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: A; Bearings: Ball; Ambient Temperature: 40 Degrees C; Body Dia.: 5.7 in; Overall Height: 7 13/16 in; Mounting Brackets: Thermoset; Duty: Intermittent; Average Life: 500 hr; Standards: CSA Certified (LR31393), UL Recognized (E47185); Replacement Brushes: Mfr. No. 833392-61
| Item | Vacuum Motor |
| Motor/Blower Type | Bypass |
| Discharge | Peripheral Bypass |
| Blower Stages | 3 |
| No. of Speeds | 1 |
| Motor Enclosure Design | Open |
| CFM @ 2-In. Orifice | 99 |
| Vacuum (H2O Sealed) | 117.4 |
| Voltage | 120 |
| Hz | 60/50 |
| Phase | 1 |
| Max. Amps | 10.7 A |
| Max. Air Watts | 368 W |
| Motor Mounting Type | Lug |
| Motor Design | Universal AC/DC |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 5.7 in |
| Overall Height | 7 13/16 in |
| Mounting Brackets | Thermoset |
| Duty | Intermittent |
| Average Life | 500 hr |
| Standards | CSA Certified (LR31393), UL Recognized (E47185) |
| Replacement Brushes | Mfr. No. 833392-61 |
