Availability : Usually Ships in 20-30 Business Days
Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

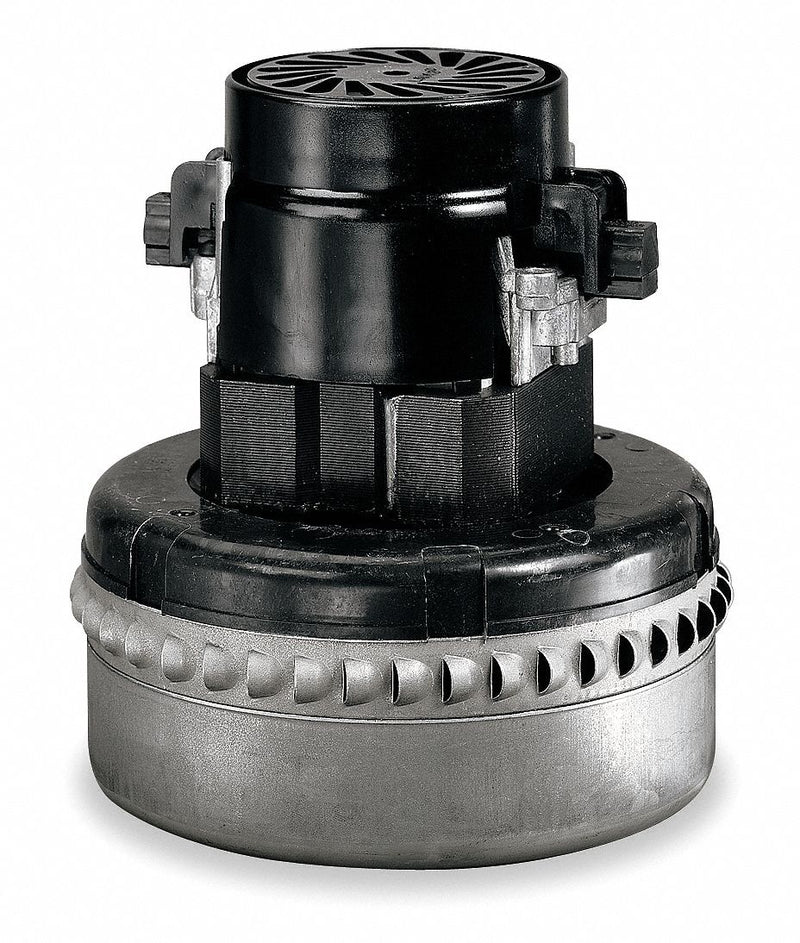

Item | Vacuum Motor |
Motor/Blower Type | Bypass |
Discharge | Peripheral Bypass |
Blower Stages | 3 |
No. of Speeds | 1 |
Motor Enclosure Design | Open |
CFM @ 2-In. Orifice | 76 |
Vacuum (H2O Sealed) | 74 |
Voltage | 36V DC |
Phase | 1 |
Max. Amps | 17.9 A |
Max. Air Watts | 185 W |
Motor Mounting Type | Lug |
Motor Design | Universal AC/DC |
Motor Mounting Position | All Angle |
Motor Thermal Protection | None |
Ins. Class | A |
Bearings | Ball |
Ambient Temperature | 40 Degrees C |
Body Dia. | 5.7 in |
Overall Height | 7 13/16 in |
Mounting Brackets | Thermoset |
Duty | Intermittent |
Average Life | 500 hr |
Motor Efficiency Group | Standard Efficient |
Standards | CSA Certified (LR31393), UL Listed (E47185) |
Replacement Brushes | Mfr. No. 833494-50 |
