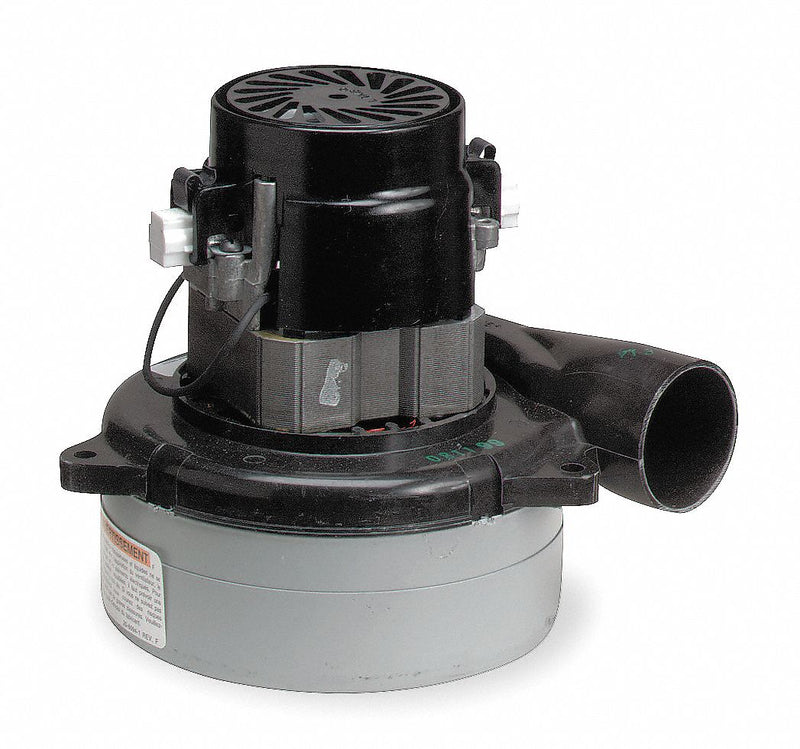

Ametek Lamb Tangential Bypass Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 1 - 116520-50

Ametek LambSKU: C1561013
MPN : 116520-50
Weight : 4.2 lb

filler

Price:
$98.03 $158.11

Availability : Usually Ships in 16 Business Days

Designed to move clean and dry air. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargeTangential Bypass
Blower Stages1
No. of Speeds1
Motor Enclosure DesignOpen
CFM @ 2-In. Orifice93
Vacuum (H2O Sealed)47.8
Voltage120
Hz60/50
Phase1
Max. Amps5.7 A
Max. Air Watts157 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7 in
Overall Height4 7/16 in
Mounting BracketsMetal
DutyIntermittent
Average Life500 hr
StandardsUL Recognized (E47185)
Replacement Brushes2YU17
