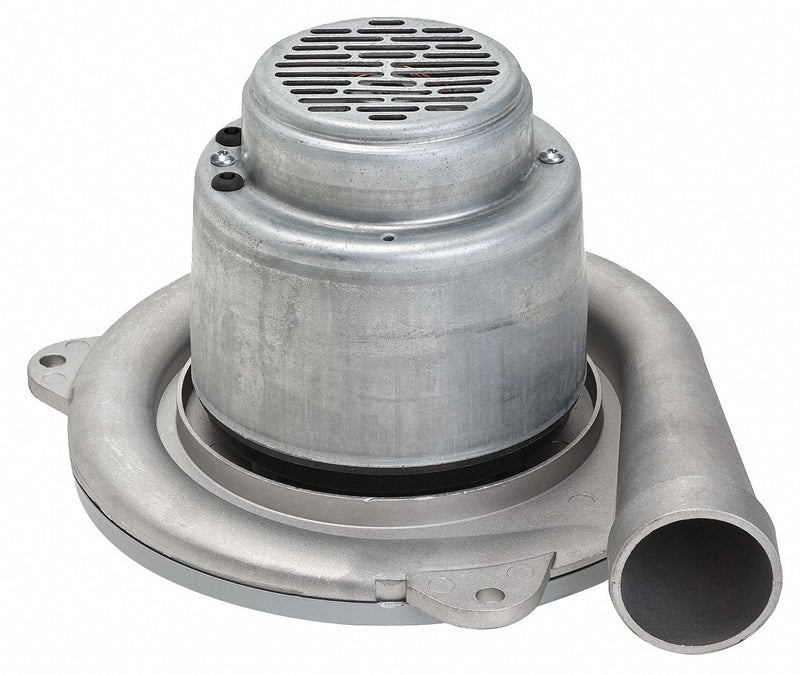

Ametek Lamb Tangential Bypass Vacuum Motor, 8.4 in Body Dia., 240 Voltage, Blower Stages: 1 - 122172-18

Ametek LambSKU: C1567114
MPN : 122172-18
Weight : 9.01 lb

filler

Price:
$261.80 $422.25

Availability : Usually Ships in 16 Business Days

This tangential discharge vacuum motor is designed to to move clean and dry air. Use in commercial vacuums, car wash, dental evacuators, hopper loaders, and material handling and transfer systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargeTangential Bypass
Blower Stages1
No. of Speeds1
Motor Enclosure DesignOpen
CFM @ 2-In. Orifice166
Vacuum (H2O Sealed)110
Voltage240
Hz60
Phase1
Max. Amps7.8 A
Max. Air Watts717 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionManual
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.8.4 in
Overall Height6 in
Mounting BracketsAluminum
DutyIntermittent
Average Life1,500 hr
Nominal Efficiency45 %
StandardsUL Recognized (E47185)
