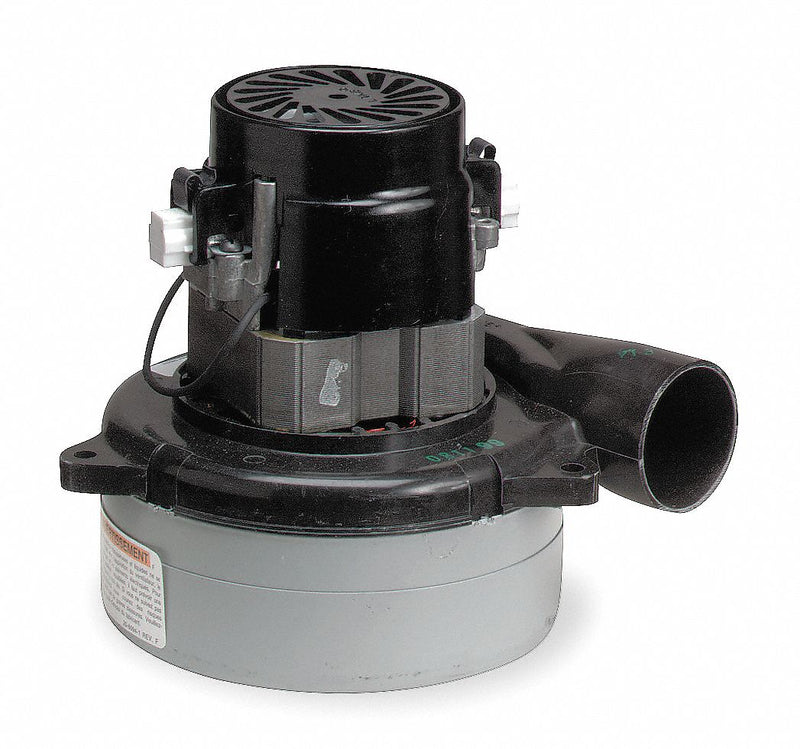

Ametek Lamb Tangential Bypass Vacuum Motor, 5.7 in Body Dia., 240 Voltage, Blower Stages: 2 - 116420-13

Ametek LambSKU: C1561010
MPN : 116420-13
Weight : 5.75 lb

filler

Price:
$144.57 $233.18

Availability : Usually Ships in 16 Business Days

This tangential discharge vacuum motor is designed to to move clean and dry air. Use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargeTangential Bypass
Blower Stages2
No. of Speeds1
Motor Enclosure DesignOpen
CFM @ 2-In. Orifice108
Vacuum (H2O Sealed)87.5
Voltage240
Hz60/50
Phase1
Max. Amps4.4 A
Max. Air Watts317 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7 in
Overall Height6 15/16 in
Mounting BracketsThermoset
DutyIntermittent
Average Life500 hr
StandardsCSA Certified (LR31393), UL Recognized (E47185)
Replacement Brushes2UV65
