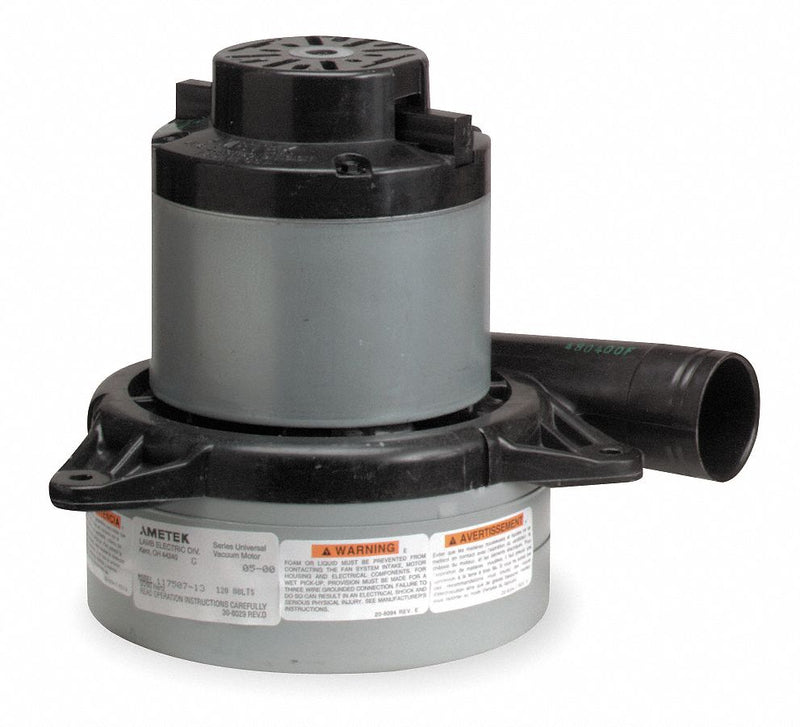

Ametek Lamb Tangential Bypass Vacuum Motor, 7.2 in Body Dia., 120 Voltage, Blower Stages: 2 - 117465-13

Ametek LambSKU: C1551402
MPN : 117465-13
Weight : 9.5 lb

filler

Price:
$593.70 $724.02

Availability : Usually Ships in 10-15 Business Days

Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Air-sealed bearings provide added protection against dirt and moisture. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeBypass
DischargeTangential Bypass
Blower Stages2
No. of Speeds1
Motor Enclosure DesignOpen Dripproof
CFM @ 2-In. Orifice110
Vacuum (H2O Sealed)123
Voltage120
Hz60/50
Phase1
Max. Amps12.8 A
Max. Air Watts437 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.7.2 in
Overall Height7 11/16 in
Mounting BracketsThermoset
DutyIntermittent
Average Life700 hr
StandardsCSA Certified (LR31393), UL Recognized (E47185)
Replacement BrushesMfr. No. 833410-52
