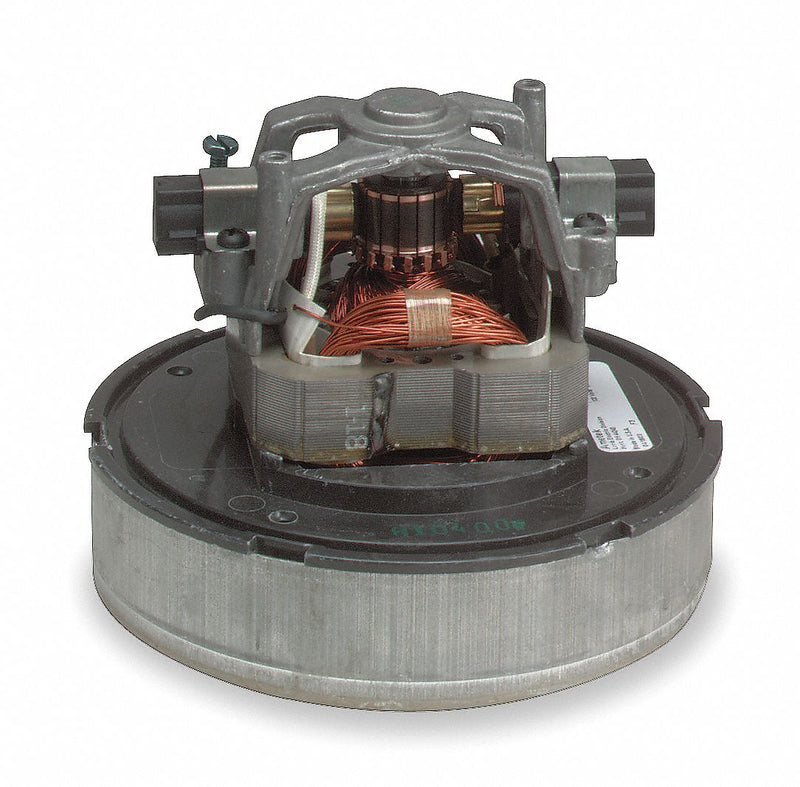

Ametek Lamb Thru-Flow Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 1 - 116297-00

Ametek LambSKU: C1551395
MPN : 116297-00
Weight : 3.5 lb

filler

Price:
$94.72 $115.51

Availability : Usually Ships in 20-30 Business Days

Designed to move clean and dry air. Thermoset mounting brackets are ideal for light-duty applications. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.

ItemVacuum Motor
Motor/Blower TypeThru-Flow
DischargeThru-Flow
Blower Stages1
No. of Speeds1
Motor Enclosure DesignOpen Dripproof
CFM @ 2-In. Orifice123
Vacuum (H2O Sealed)60.6
Voltage120
Hz60/50
Phase1
Max. Amps6.9 A
Max. Air Watts227 W
Motor Mounting TypeLug
Motor DesignUniversal AC/DC
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassA
BearingsBall
Ambient Temperature40 Degrees C
Body Dia.5.7 in
Overall Height4 1/2 in
Mounting BracketsThermoset
DutyIntermittent
Average Life500 hr
Motor Efficiency GroupEnergy Efficient
StandardsCSA Certified (LR31393), UL Recognized (E47185)
Replacement BrushesMfr. No. 833400-57
