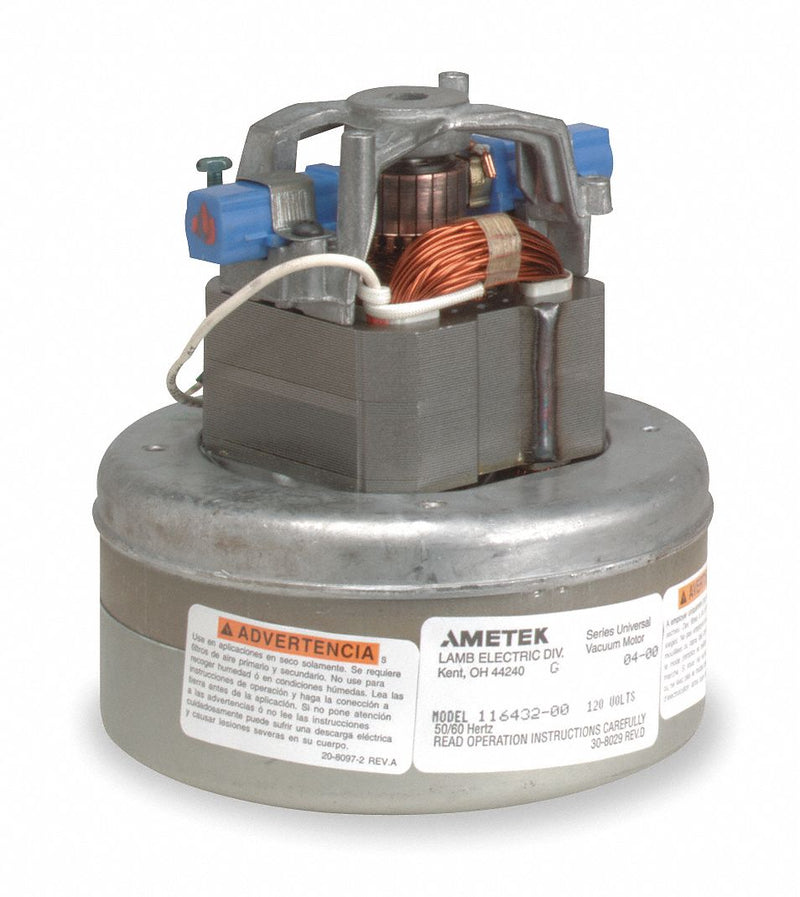

Ametek Lamb Thru-Flow Vacuum Motor, 5.7 in Body Dia., 120 Voltage, Blower Stages: 2 - 116227-00
filler
Availability : Usually Ships in 1-3 Business Days
Designed to move clean and dry air. Ideal for use in commercial canister or utility vacuums, sprayer/foggers, material handling and transfer systems, car wash, and central vacuum systems.
| Item | Vacuum Motor |
| Motor/Blower Type | Thru-Flow |
| Discharge | Thru-Flow |
| Blower Stages | 2 |
| No. of Speeds | 2 |
| Motor Enclosure Design | Open Dripproof |
| CFM @ 2-In. Orifice | 107 |
| Vacuum (H2O Sealed) | 106.9 |
| Voltage | 120 |
| Hz | 60/50 |
| Phase | 1 |
| Max. Amps | 8.8 A |
| Max. Air Watts | 316 W |
| Motor Mounting Type | Lug |
| Motor Design | Universal AC/DC |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | A |
| Bearings | Ball |
| Ambient Temperature | 40 Degrees C |
| Body Dia. | 5.7 in |
| Overall Height | 5 15/16 in |
| Mounting Brackets | Metal |
| Duty | Intermittent |
| Average Life | 500 hr |
| Motor Efficiency Group | Standard Efficient |
| Standards | CSA Certified (LR31393), UL Recognized (E47185) |
| Replacement Brushes | Mfr. No. 833384-50 |
