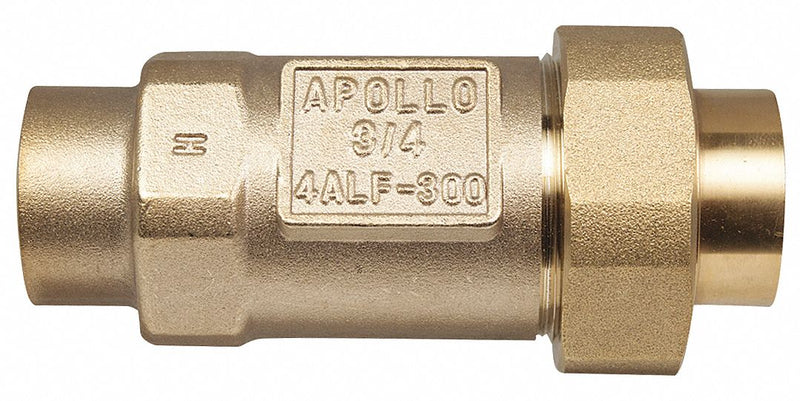

Apollo Check Valve, 3/4 in, Dual, Inline, Bronze, FNPT x FNPT - 4ALF3A44A
filler
Availability : Usually Ships in 25 Business Days
This corrosion-resistant APOLLO dual check valve helps prevent backflow by either backpressure or back-siphonage from a cross connection between potable water lines and substances that are objectionable, but not health hazards.,Independently-acting captured spring,Low head loss
| Item - Check Valves | Check Valve |
| Flow Design | Dual |
| Mechanism and Body Design | Inline |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 3/4 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 2 psi |
| Mounting Orientation - Check Valves | Horizontal |
| Seal Material - Check Valves | PTFE |
| Max. Temp. - Valves | 180 Degrees F |
| Min. Temp. - Valves | 33 Degrees F |
| Max. Water Pressure - Valves | 175 psi |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seat Material - Check Valves | Buna-N |
| Spring Material - Check Valves | Stainless Steel |
| Application - Valves | General Purpose |
| Length | 4 1/2 in |
| Width | 4 1/2 in |
| Overall Height | 2 1/4 in |
| Cap to Inlet Center | 2 in |
| Hex Size | 2 3/8 in |
| Standards | ASSE 1024, ASSE 1024 CSA B64.6 |
