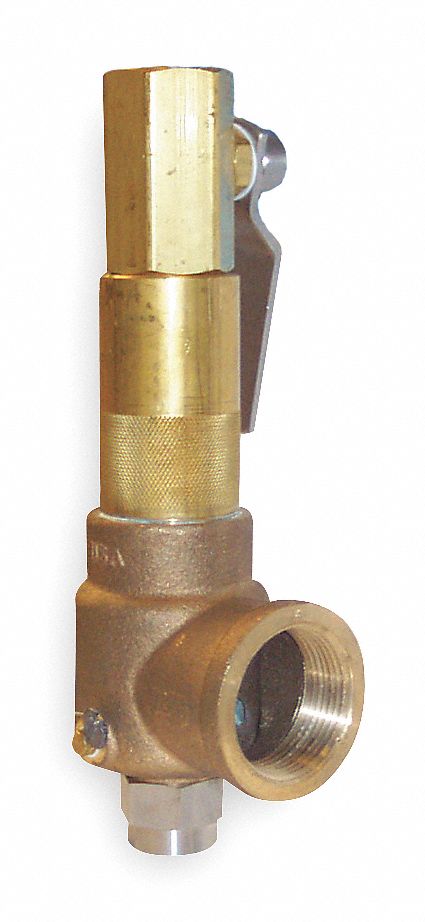

Apollo Bronze POP Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 523GFBKMAA0500
Availability : Usually Ships in 25 Business Days
POP Safety Relief Valve; Body Material: Bronze; Inlet Type: MNPT; Outlet Type: FNPT; Inlet Size: 1 1/4 in; Outlet Size: 2 in; Factory Set Pressure: 500 psi; Pressure Range: 5 to 600 psi; Disc Material: 316 Stainless Steel; Overall Height: 13 1/4 in; Application: Air and Gas Compressors and Dryers, Pressure Vessels and Pressure Piping System etc; Seat Material: Metal; Spring Material: Stainless Steel; Temp. Range: -320 Degrees to 422 Degrees F; Test Lever: Yes; Standards: ASME Section VIII UV, CSA CRN, NB
| Item | POP Safety Relief Valve |
| Body Material | Bronze |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 1/4 in |
| Outlet Size | 2 in |
| Factory Set Pressure | 500 psi |
| Pressure Range | 5 to 600 psi |
| Disc Material | 316 Stainless Steel |
| Overall Height | 13 1/4 in |
| Application | Air and Gas Compressors and Dryers, Pressure Vessels and Pressure Piping System etc |
| Seat Material | Metal |
| Spring Material | Stainless Steel |
| Temp. Range | -320 Degrees to 422 Degrees F |
| Test Lever | Yes |
| Standards | ASME Section VIII UV, CSA CRN, NB |
