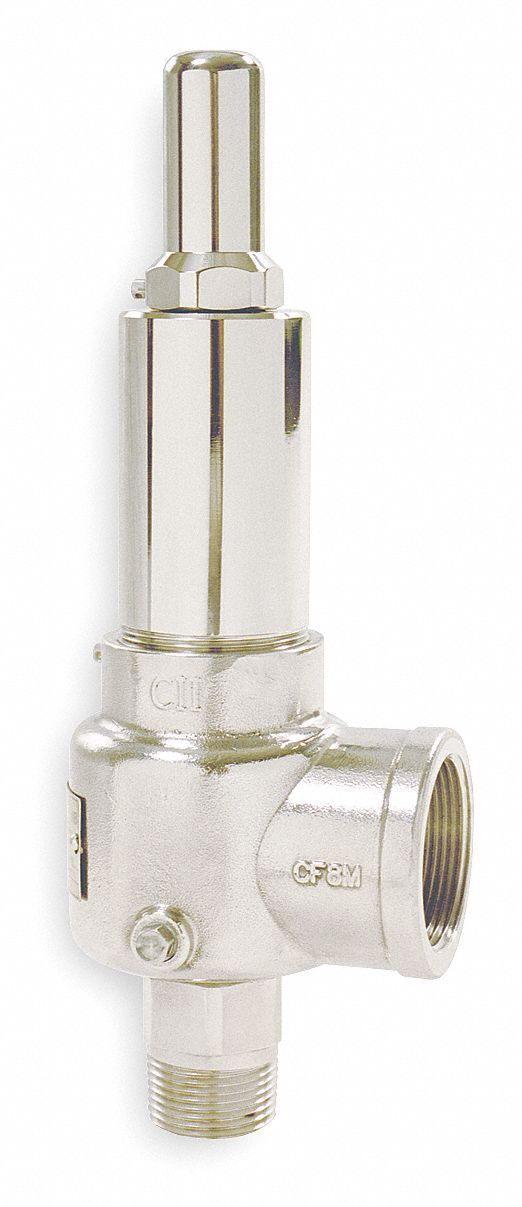

Apollo Stainless Steel POP Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 543EEBKMAA0300
filler
Availability : Usually Ships in 25 Business Days
This safety relief valve features a full-nozzle design, and can be used in closed systems. It also features metal-to-metal seating and is ideal for pressure vessels and pressure piping systems. Valves are factory preset and sealed to prevent tampering. Not adjustable.
| Item | POP Safety Relief Valve |
| Body Material | Stainless Steel |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 1 in |
| Outlet Size | 1 1/4 in |
| Factory Set Pressure | 300 psi |
| Pressure Range | 15 to 900 psi |
| Disc Material | 316 Stainless Steel |
| Overall Height | 9 in |
| Application | Air and Gas Compressors and Dryers, Pressure Vessels and Pressure Piping System etc |
| Seat Material | Metal |
| Spring Material | Stainless Steel |
| Temp. Range | -320 Degrees to 800 Degrees F |
| Test Lever | Yes |
| Standards | ASME Section VIII UV, CSA CRN, NB |
