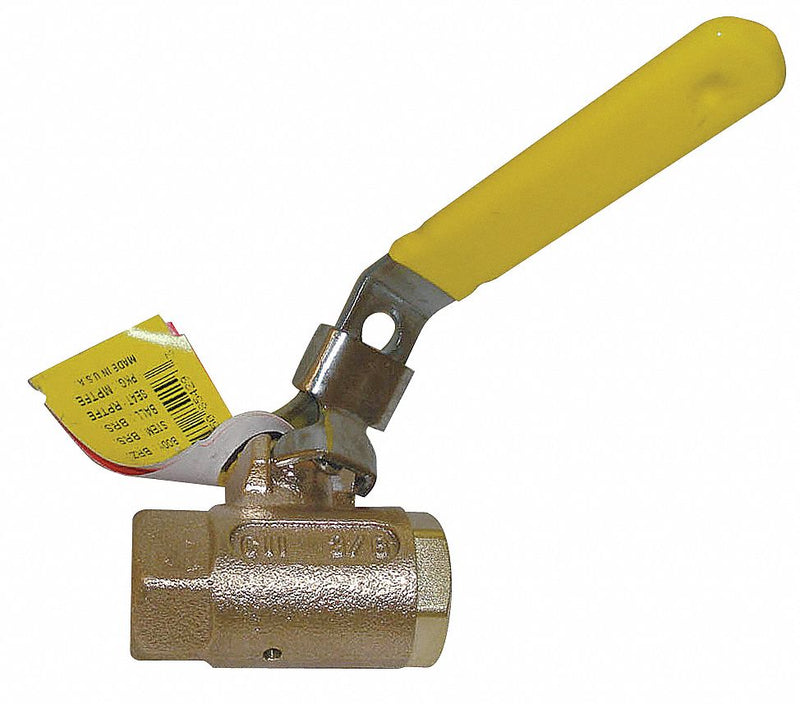

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 2 in, Connection Type FNPT x FNPT - 701082741
filler
Availability : Usually Ships in 25 Business Days
Bronze Ball Valves with Auto Drain, Max. pressure: 600 psi WOG, 150 psi WSP,Standard-port valves have 2-pc. B584 bronze body with B16 brass retainer and RPTFE reinforced seats. Blowoutproof stem design with adjustable packing gland and automatic drain. Handle is zinc-plated steel. FNPT connections.,Meet MSS SP-110 standards.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | Inline |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 2 in |
| Connection Type | FNPT x FNPT |
| Port | Standard |
| Max. Pressure | 125 psi CWP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Locking Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | 316 Stainless Steel |
| Body Seal Material | PTFE |
| Features | SS Latch-Lock Lever with Auto Drain |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS SP-110 |
| Overall Length | 10.24 in |
