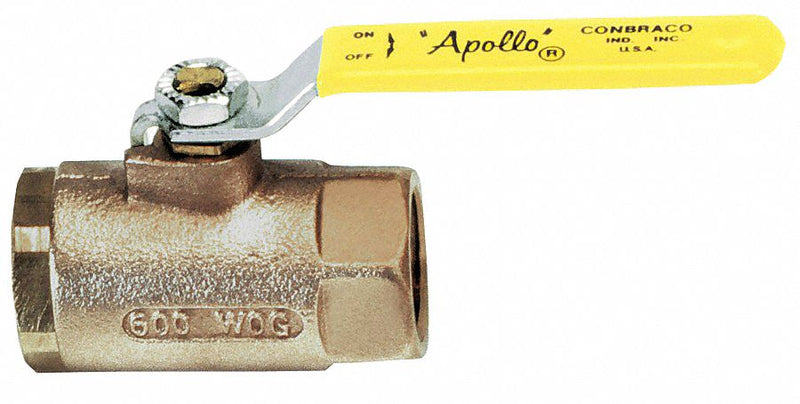

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 2 in, Connection Type FNPT x FNPT - 70-108-41

Apollo ValvesSKU: C2673058
MPN : 70-108-41
Weight : 6.15 lb

filler

Price:
$201.68 $325.30

Availability : Usually Ships in 25 Business Days

Bronze Ball Valves with Auto Drain, Max. pressure: 600 psi WOG, 150 psi WSP,Standard-port valves have 2-pc. B584 bronze body with B16 brass retainer and RPTFE reinforced seats. Blowoutproof stem design with adjustable packing gland and automatic drain. Handle is zinc-plated steel. FNPT connections.,Meet MSS SP-110 standards.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size2 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure600 psi CWP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
FeaturesAuto Drain
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsASTM B16, MSS SP-110
Overall Length4.16 in
