Availability : Usually Ships in 25 Business Days

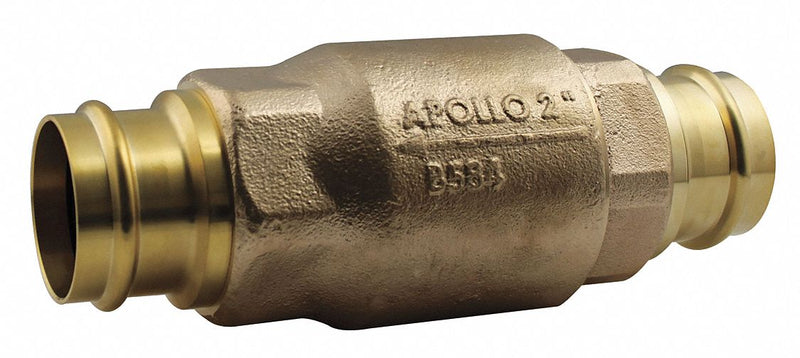

Low-Lead Bronze Ball Cone Check Valves, Max. pressure: 250 psi Max. temp.: 250F,Ideal for direct mechanical connection to ASTM B88 Type K, L, and M hard drawn copper tubing. PTFE seats and 316 stainless steel springs. Press connection. Valves are not for use with reciprocating pumps and similar applications. Not suitable for flammable gas or steam service. Can be mounted vertically or horizontally.,Meet NSF/ANSI 61-8 (2010) Annex F and G, NSF-372, and MSS-SP139.
Item - Check Valves | Check Valve |
Flow Design | Single |
Mechanism and Body Design | Inline Ball Cone |
Body Material - Valves | Bronze |
Pipe or Tube Size - Check Valves | 2 in |
Connection Type - Check Valves | Press x Press |
Cracking Pressure - Check Valves | 0.5 psi |
Mounting Orientation - Check Valves | Horizontal, Vertical |
Seal Material - Check Valves | EPDM |
Max. Temp. - Valves | 180 Degrees F |
Min. Temp. - Valves | 33 Degrees F |
Max. Water Pressure - Valves | 250 psi |
Max. Steam Pressure - Valves | 15 psi WSP |
Seat Material - Check Valves | RPTFE |
Spring Material - Check Valves | 316 Stainless Steel |
Flow - Valves | 81 gpm |
Application - Valves | General Purpose |
Length | 9 45/64 in |
Width | 9 11/16 in |
Standards | NSF 372, NSF61-G |
