Availability : Usually Ships in 25 Business Days

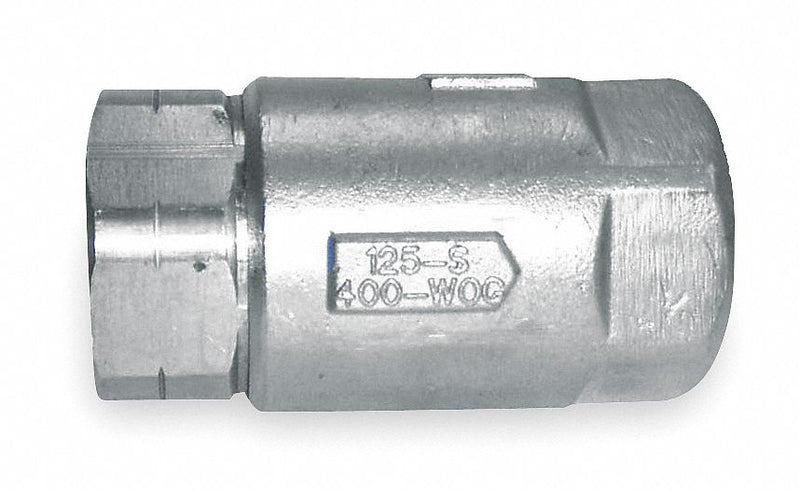

Providing a tight shutoff with liquid media, this APOLLO ball cone spring check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is spring-loaded for fast seating action and requires no radial alignment.
Item - Check Valves | Check Valve |
Flow Design | Single |
Mechanism and Body Design | Inline Ball Cone |
Body Material - Valves | Stainless Steel |
Pipe or Tube Size - Check Valves | 1 1/4 in |
Connection Type - Check Valves | FNPT x FNPT |
Cracking Pressure - Check Valves | 0.5 psi |
Mounting Orientation - Check Valves | Horizontal, Vertical |
Seal Material - Check Valves | EPDM |
Max. Temp. - Valves | 180 Degrees F |
Min. Temp. - Valves | 33 Degrees F |
Max. Water Pressure - Valves | 400 psi |
Max. Steam Pressure - Valves | 150 psi WSP |
Seat Material - Check Valves | RPTFE |
Spring Material - Check Valves | 316 Stainless Steel |
Application - Valves | General Purpose |
Length | 4 3/16 in |
Width | 4 1/16 in |
Overall Height | 2 1/8 in |
