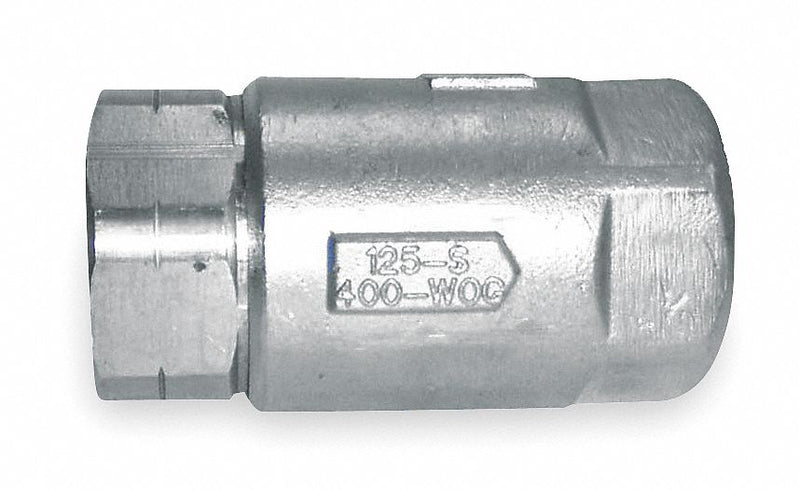

Apollo Check Valve, 2 in, Single, Inline Ball Cone, Stainless Steel, FNPT x FNPT - 6210801

Apollo ValvesSKU: C1910634
MPN : 6210801
Weight : 6.25 lb


$975.86 $1,573.97

Availability : Usually Ships in 25 Business Days

Providing a tight shutoff with liquid media, this APOLLO ball cone spring check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is spring-loaded for fast seating action and requires no radial alignment.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Ball Cone
Body Material - ValvesStainless Steel
Pipe or Tube Size - Check Valves2 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves0.5 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves180 Degrees F
Min. Temp. - Valves33 Degrees F
Max. Water Pressure - Valves400 psi
Max. Steam Pressure - Valves150 psi WSP
Seat Material - Check ValvesRPTFE
Spring Material - Check Valves316 Stainless Steel
Application - ValvesGeneral Purpose
Length6 in
Width6 in
Overall Height3 in
