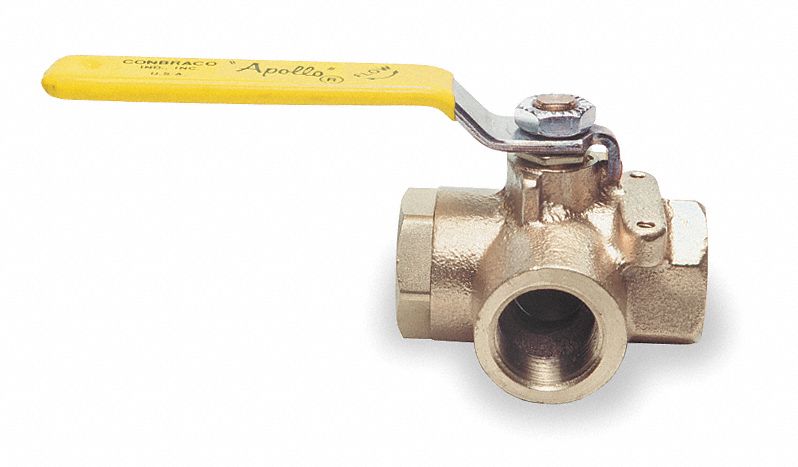

Apollo Ball Valve, Bronze, 3-Way, 2-Piece, Pipe Size 1 1/2 in, Connection Type FNPT x FNPT x FNPT - 7060701

Apollo ValvesSKU: C1933013
MPN : 7060701
Weight : 5.37 lb
filler

Price:
$175.78 $214.37

Availability : Usually Ships in 10-15 Business Days

3-Way Bronze Ball Diverter Valves, Max. pressure: 400 psi WOG Temp. range: -20 to 450F,Combine the features of two 2-way valves—larger ports simplify tank selection and fluid transfer. Drilled and tapped for panel mounting. L-port with RPTFE seats and blowoutproof stem with adjustable packing gland. FNPT connections.,Meet MSS-SP-110 standards.

ItemBall Valve
Body MaterialBronze
Body Style3-Way
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1 1/2 in
Connection TypeFNPT x FNPT x FNPT
PortStandard L
Max. Pressure400 psi CWP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
Features3-Way Diverter
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS-SP-110
Overall Length8.77 in
