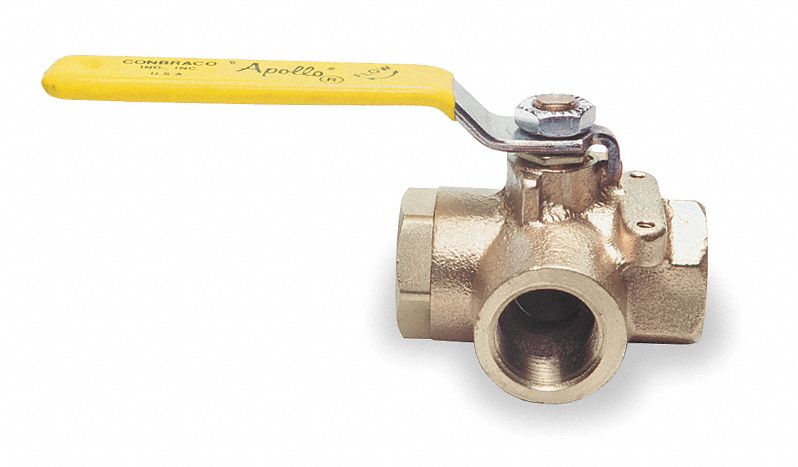

Apollo Ball Valve, Bronze, 3-Way, 2-Piece, Pipe Size 3/8 in, Connection Type FNPT x FNPT x FNPT - 7060201
filler
Availability : Usually Ships in 10-15 Business Days
3-Way Bronze Ball Diverter Valves, Max. pressure: 400 psi WOG Temp. range: -20 to 450F,Combine the features of two 2-way valveslarger ports simplify tank selection and fluid transfer. Drilled and tapped for panel mounting. L-port with RPTFE seats and blowoutproof stem with adjustable packing gland. FNPT connections.,Meet MSS-SP-110 standards.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | 3-Way |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3/8 in |
| Connection Type | FNPT x FNPT x FNPT |
| Port | Standard L |
| Max. Pressure | 400 psi CWP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | 3-Way Diverter |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS-SP-110 |
| Overall Length | 5.92 in |
