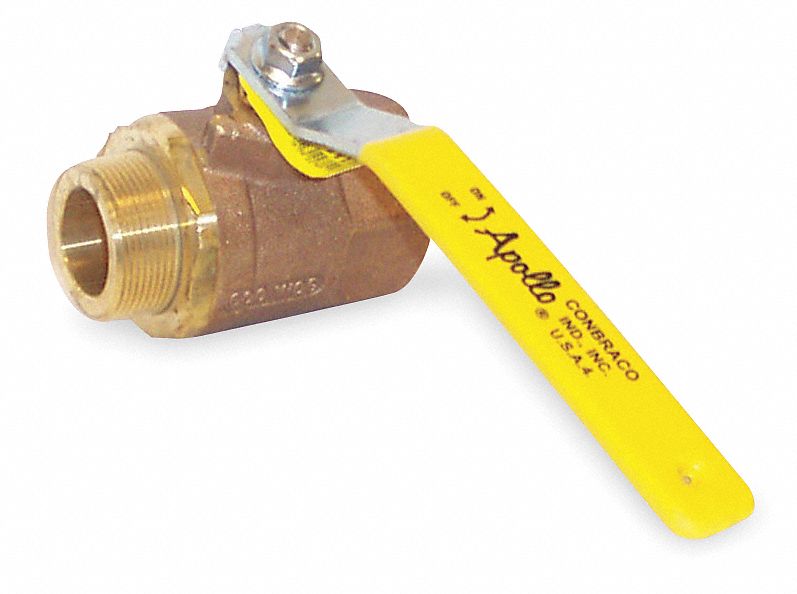

Valve has a chromium-plated ball and adjustable packing gland. Vacuum service to 29" Hg. For use in steam, water, oil, and gas systems in commercial and light industrial applications.
Item | Ball Valve |
Body Material | Bronze |
Body Style | Inline |
General Connection Type | Female NPT |
Valve Structure | 2-Piece |
Pipe Size | 1 1/2 in |
Connection Type | FNPT x MNPT |
Port | Standard |
Max. Pressure | 600 psi CWP |
Max. Steam Pressure | 150 psi WSP |
Temp. Range | -20 Degrees to 450 Degrees F |
Ball Material | Chrome Plated Brass |
Seat Material | RPTFE |
Stem Type | Blowout Proof |
Handle Type | Lever |
Handle Material | Zinc Plated Steel |
Stem Material | Brass |
Body Seal Material | PTFE |
Features | Heavy Pattern Construction |
Ball Valve Product Group | Manual |
Valve Basic Body Material | Bronze |
Standards | MSS SP-110 |
Overall Length | 5.18 in |
