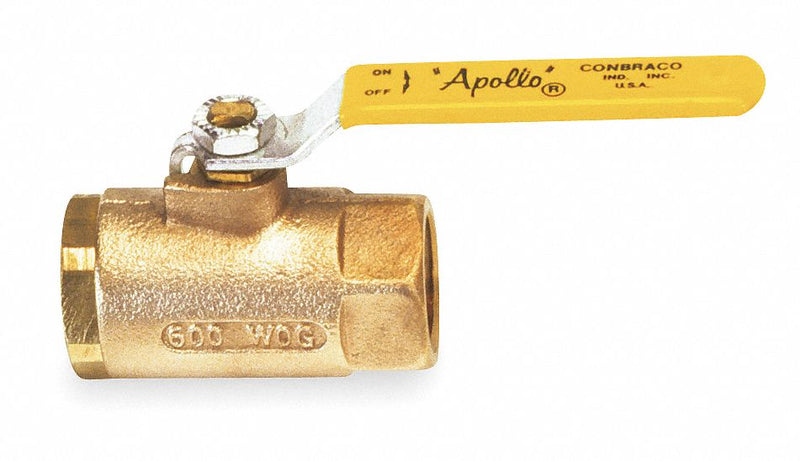

Apollo Ball Valve, Bronze B584, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - 7010301

Apollo ValvesSKU: C1933389
MPN : 7010301
Weight : 1.0 lb

filler

Price:
$35.56 $57.35

Availability : Usually Ships in 10 Business Days

Valve has a chromium-plated ball and adjustable packing gland. Vacuum service to 29" Hg. For use in steam, water, oil, and gas systems in commercial and light industrial applications.

ItemBall Valve
Body MaterialBronze B584
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Bronze
Seat MaterialPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
FeaturesHeavy Pattern Construction
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsASTM B16
Overall Length2.25 in
