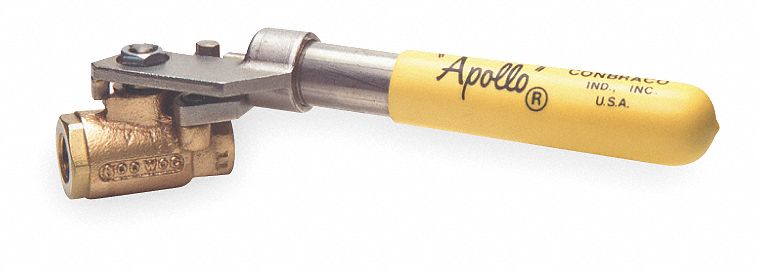

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type FNPT x FNPT - 7150301

Apollo ValvesSKU: C1933004
MPN : 7150301
Weight : 1.8 lb


$172.05 $209.82

Availability : Usually Ships in 1-3 Business Days

Bronze, Max. pressure: 600 psi WOG; 150 psi WSP Temp. range: -20 to 500F,2-pc. valves have MPTFE seats. Stainless steel lever components.,Meet MSS-SP-110 standards.,Ball Valves with Spring Return Handle,Standard-port valves have a blowoutproof stem and adjustable packing gland. FNPT connections.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1/2 in
Connection TypeFNPT x FNPT
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialPTFE
Stem TypeBlowout Proof
Handle TypeSpring Return
Handle Material304 Stainless Steel with Vinyl Grip
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
FeaturesSpring Return Handle
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
Overall Length6.94 in
