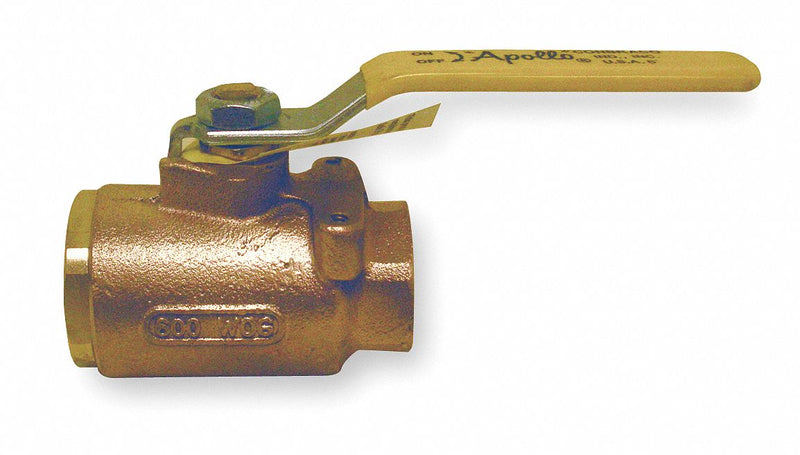

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 3/8 in, Connection Type FNPT x FNPT - 7710201

Apollo ValvesSKU: C1933143
MPN : 7710201
Weight : 0.7 lb
filler

Price:
$38.08 $46.44

Availability : Usually Ships in 10-15 Business Days

This Apollo ball valve is designed for easy actuator mounting or panel mounting where a high Cv value is required (Cv value is the gallons of water per minute that the valve will pass with a 1 psig pressure drop). Valve features ASTM B584 bronze body and an adjustable packing gland. Valve is suitable or use with water, oil, gas, and steam.

ItemBall Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size3/8 in
Connection TypeFNPT x FNPT
PortFull
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. RangeUp to 500 Degrees F
Ball MaterialChrome Plated Bronze
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
FeaturesMounting Pad for Actuation
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS SP-110
Overall Length4.96 in
