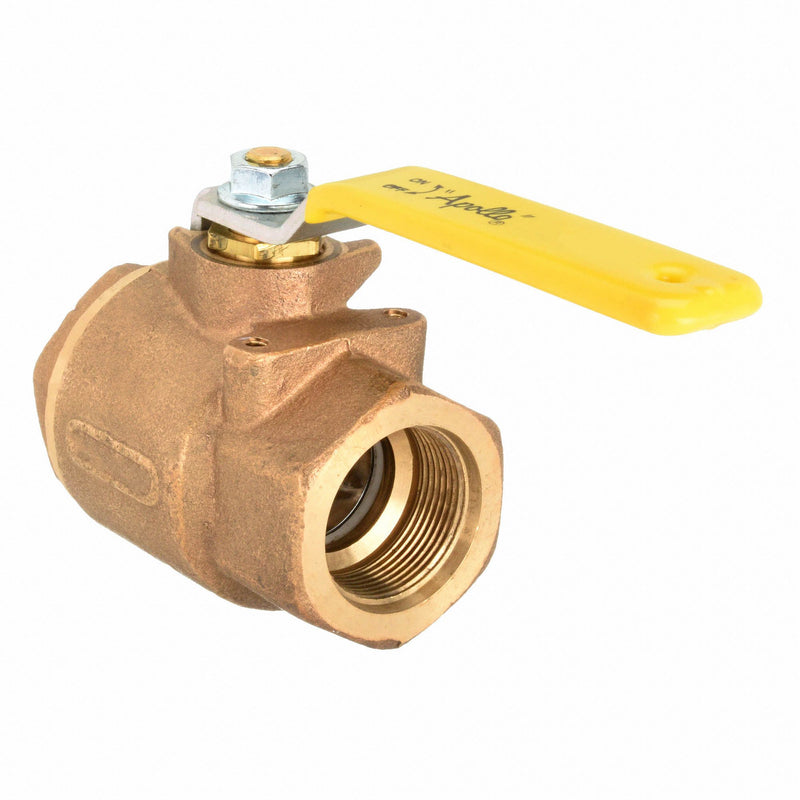

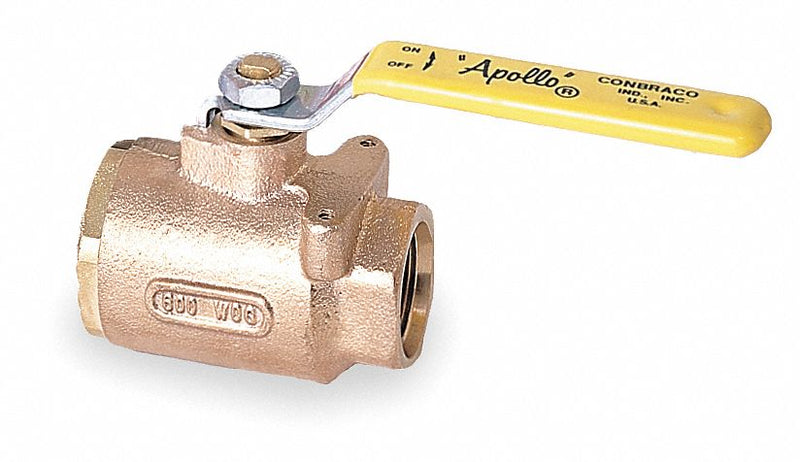

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1/2 in, Connection Type SAE Female - 7790301
filler
Availability : Usually Ships in 25 Business Days
SAE,2-pc., full-port valves are machined to accept an O-ring boss connection. Drilled and tapped pad allows easy panel mounting.,Bronze Ball Valves with SAE and Union Connections, Max. pressure: 600 psi WOG Temp. range: -20 to 450F,With RPTFE seats and blowoutproof stem with adjustable packing gland.,Meet MSS-SP-110 standards.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | Inline |
| General Connection Type | SAE |
| Valve Structure | 2-Piece |
| Pipe Size | 1/2 in |
| Connection Type | SAE Female |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Brass |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | Mounting Pad for Actuation |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS-SP-110 |
| Overall Length | 2.25 in |
