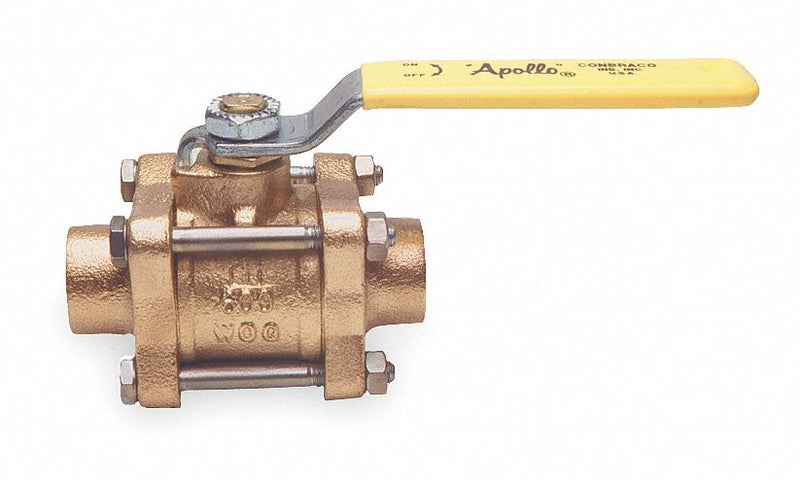

Apollo Ball Valve, Bronze B584, Inline, 3-Piece, Pipe Size 1/2 in, Tube Size 1/2 in - 8220301
filler
Availability : Usually Ships in 15-20 Business Days
Bronze 3-Pc. Ball Valves, Full-Port, Max. pressure: 600 psi WOG; 150 psig Temp. range: -20 to 450F,With RPTFE seats and seals. Chrome-plated (1/4" to 2-1/2") or stainless steel (3" to 4") ball, and blowoutproof stem with adjustable packing gland on chevron stem packing. For use with water, oil, gas, and low-pressure steam.,Meet MSS-SP-110 standards.
| Item | Ball Valve |
| Body Material | Bronze B584 |
| Body Style | Inline |
| General Connection Type | Sweat |
| Valve Structure | 3-Piece |
| Pipe Size | 1/2 in |
| Tube Size | 1/2 in |
| Connection Type | Sweat x Sweat |
| Port | Full |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Bronze |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Zinc Plated Steel with Vinyl Grip |
| Stem Material | Brass |
| Body Seal Material | RPTFE |
| Features | In-Line Repairable |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | MSS-SP-110 |
| Overall Length | 6.27 in |
