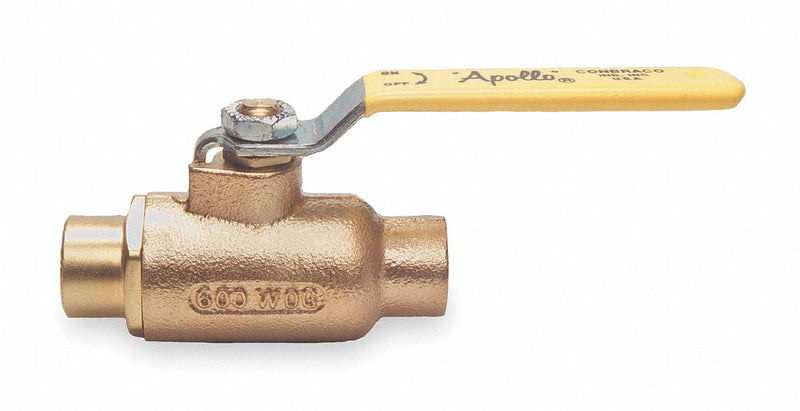

Apollo Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 2 in, Tube Size 2 in - 7020801
filler
Availability : Usually Ships in 1-3 Business Days
Valve has a chromium-plated ball and adjustable packing gland. Vacuum service to 29" Hg. For use in steam, water, oil, and gas systems in commercial and light industrial applications.
| Item | Ball Valve |
| Body Material | Bronze |
| Body Style | Inline |
| General Connection Type | Sweat |
| Valve Structure | 2-Piece |
| Pipe Size | 2 in |
| Tube Size | 2 in |
| Connection Type | Sweat x Sweat |
| Port | Standard |
| Max. Pressure | 600 psi CWP |
| Max. Steam Pressure | 150 psi WSP |
| Temp. Range | -20 Degrees to 450 Degrees F |
| Ball Material | Chrome Plated Bronze |
| Seat Material | RPTFE |
| Stem Type | Blowout Proof |
| Handle Type | Lever |
| Handle Material | Steel |
| Stem Material | Brass |
| Body Seal Material | PTFE |
| Features | Heavy Duty |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Bronze |
| Standards | ASTM B16, MSS SP-110 |
| Overall Length | 6.37 in |
