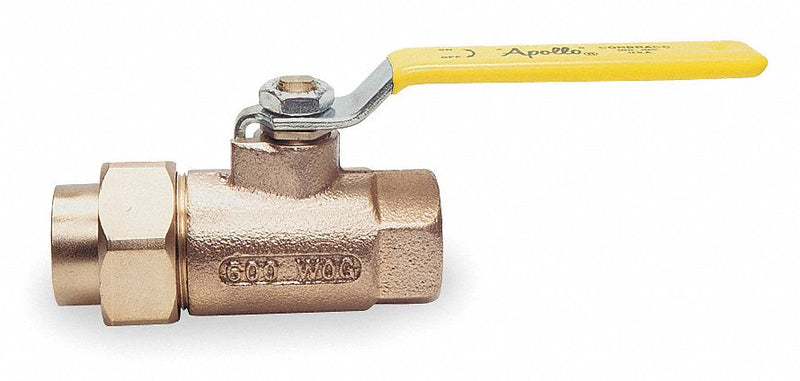

Apollo Ball Valve, Bronze, Inline Single Union, 2-Piece, Pipe Size 3/4 in - 7030401

Apollo ValvesSKU: C1933018
MPN : 7030401
Weight : 1.7 lb
filler

Price:
$80.35 $97.99

Availability : Usually Ships in 5-7 Business Days

FNPT,Pipe union permits quick installation and arrangement changes. Standard-port with Viton O-ring.,Bronze Ball Valves with SAE and Union Connections, Max. pressure: 600 psi WOG Temp. range: -20 to 450F,With RPTFE seats and blowoutproof stem with adjustable packing gland.,Meet MSS-SP-110 standards.

ItemBall Valve
Body MaterialBronze
Body StyleInline Single Union
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size3/4 in
Connection TypeFNPT UNION x FNPT BALL VALVE
PortStandard
Max. Pressure600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
FeaturesHeavy Pattern Construction
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
StandardsMSS-SP-110
Overall Length3.96 in
