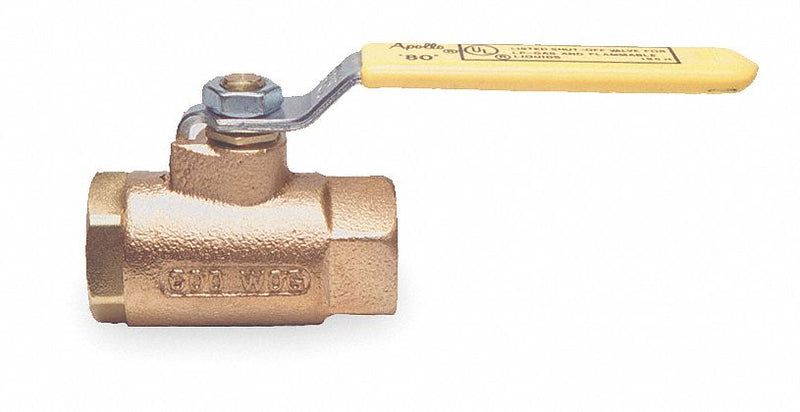

Apollo Gas Ball Valve, Bronze, Inline, 2-Piece, Pipe Size 1 in, Connection Type FNPT x FNPT - 8010501

Apollo ValvesSKU: C1933025
MPN : 8010501
Weight : 1.65 lb


$64.75 $104.44

Availability : Usually Ships in 25 Business Days

Gas Shutoff Bronze Ball Valves, Max. pressure: 600 psi WOG; 250 psig Temp. range: -20 to 450F,Standard-port valves have RPTFE seats and meet stringent standards for a variety of gas shutoff applications, including flammable gases. Blowoutproof stem with adjustable packing gland. FNPT connections.,UL Listed for LP, natural gas, heated oils, and flammable liquids.

ItemGas Ball Valve
Body MaterialBronze
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1 in
Connection TypeFNPT x FNPT
Max. Pressure250 psi LP Gas, 600 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-20 Degrees to 450 Degrees F
Ball MaterialChrome Plated Brass
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLever
Handle MaterialZinc Plated Steel with Vinyl Grip
Stem MaterialBrass
Body Seal MaterialPTFE
FeaturesFlammable Liquid and Heating Oil, Natural Gas, Suitable for LP-Gas
Ball Valve Product GroupManual
Valve Basic Body MaterialBronze
Overall Length6.55 in
