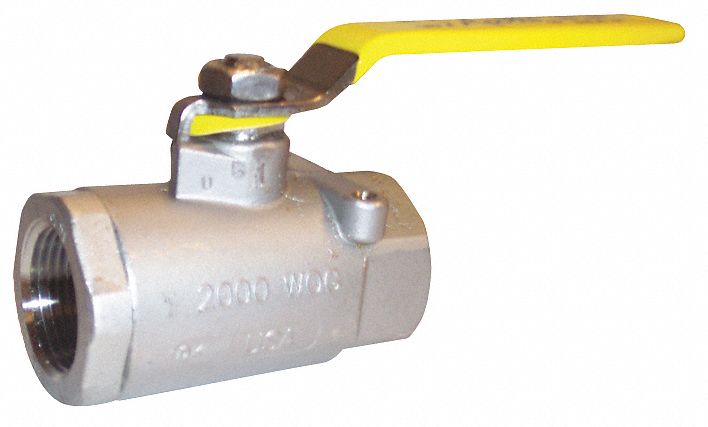

Apollo Ball Valve, CF8M Stainless Steel, Inline, 2-Piece, Pipe Size 1 1/4 in - 7610627

Apollo ValvesSKU: C1933064
MPN : 7610627
Weight : 3.15 lb
filler

Price:
$378.76 $461.90

Availability : Usually Ships in 10-15 Business Days

This Apollo ball valve features investment-cast stainless steel components for the most demanding industrial applications. Integral mounting pad with drilled and tapped holes, and blowoutproof stem with adjustable packing gland. Vacuum service to 29" Hg. For use with water, oil, gas, and low-pressure steam in most corrosive industrial environments.

ItemBall Valve
Body MaterialCF8M Stainless Steel
Body StyleInline
General Connection TypeFemale NPT
Valve Structure2-Piece
Pipe Size1 1/4 in
Connection TypeFNPT x FNPT
PortStandard
Max. Pressure1500 psi CWP
Max. Steam Pressure150 psi WSP
Temp. Range-50 Degrees to 450 Degrees F
Ball Material316 Stainless Steel
Seat MaterialRPTFE
Stem TypeBlowout Proof
Handle TypeLocking Lever
Handle Material304 Stainless Steel with Vinyl Grip
Stem Material316 Stainless Steel
Body Seal MaterialPTFE
FeaturesSS Latch Lock
Ball Valve Product GroupManual
Valve Basic Body MaterialStainless Steel
StandardsMSS-SP-110
Overall Length7.5 in
