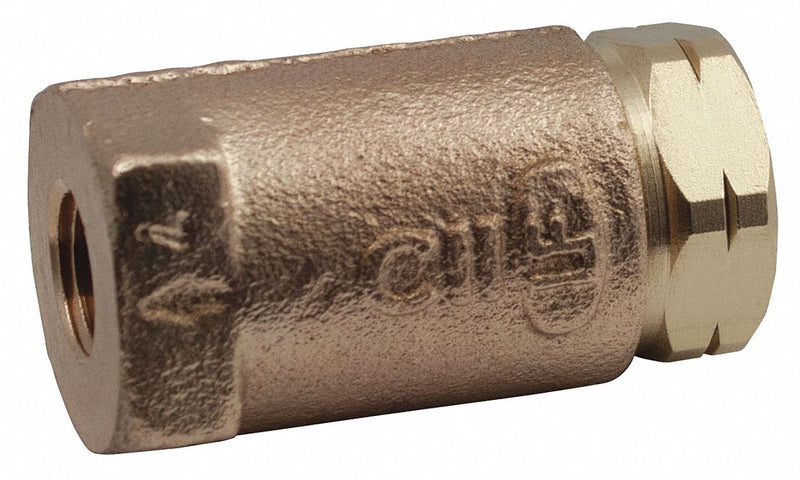

Apollo Check Valve, 1/4 in, Single, Inline Ball Cone, Bronze, FNPT x FNPT - 61LF10101
filler
Availability : Usually Ships in 25 Business Days
Providing a tight shutoff with liquid media, this APOLLO check valve has a straight-through design that assures a minimum change in velocity and protects against reverse flow. Model is certified for use in potable water applications.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Ball Cone |
| Body Material - Valves | Bronze |
| Pipe or Tube Size - Check Valves | 1/4 in |
| Connection Type - Check Valves | FNPT x FNPT |
| Cracking Pressure - Check Valves | 0.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 180 Degrees F |
| Min. Temp. - Valves | 33 Degrees F |
| Max. Water Pressure - Valves | 400 psi |
| Max. Steam Pressure - Valves | 125 psi WSP |
| Seat Material - Check Valves | RPTFE |
| Spring Material - Check Valves | Stainless Steel |
| Flow - Valves | 0.85 gpm |
| Application - Valves | General Purpose |
| Length | 2 1/16 in |
| Width | 1 3/25 in |
| Overall Height | 1 3/25 in |
| Hex Size | 1 3/25 in |
| Standards | NSF 372, NSF61-G |
